Product description

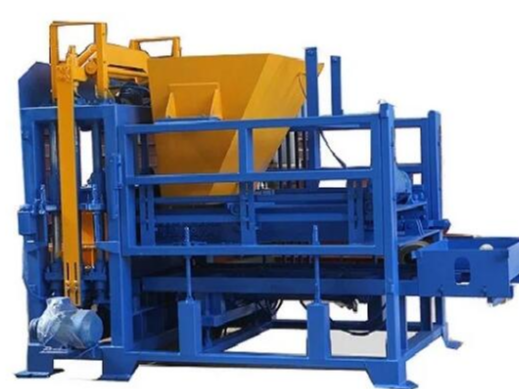

QT4-15 automatic wonton brick machine can cooperate with automatic assembly line operation and save a lot of labor, so as to ensure low investment and high output. Changing molds can produce wall tiles and floor tiles of different specifications. Production raw materials: crushed stone powder, sand, stone, cement, a large amount of fly ash, slag, industrial waste, slag, construction waste, solid waste, etc. can be added as raw materials
This whole production line is composed of cement silo, screw conveyor machine, cement scale, batching machine, mixer, belt conveyor, pallet feeder, automatic stacker and block making machine. You can choose suitable supporting facilities according to your requirements.
Technical Specifications
|
Model
|
QT4-15
|
|
Forming cycle
|
10-15S
|
|
Hydraulic pressure
|
21MPA
|
|
Vibrating frequency
|
4100 HZ
|
|
Power
|
26KW
|
|
Pallet size
|
960*550*20-30 mm
|
|
Dimension
|
3650*1610*2400 mm
|
|
Weight
|
5200KG
|
|
Brick material
|
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes, and so on.
|
|
Applied product
|
Hollow block, solid blocks, paving blocks, Curbstone, Slabs, Hourdis blocks, interlocking blocks and so on.
|
Solution:
| Total Power Consumption | 58.8 kw/h; 470.4 kw/8 hours |
| Max. Material Consumption Per 8 Hours a. Concrete: 10% cement, 30% sand; 60% stone powder b. 400-200-200mm; 2 holes hollow block |
Water: about 2995 kgs |
| Cement: about 14676 kgs | |
| Sand: about 44028 kgs | |
| Stone powder: about 88061 kgs | |
| Factory total size | At least 1400 square meters, at least 4 rooms |
| Workers | 5-6 workers in factory |
| Machine parts information | Motor: Shanbo brand (Chinese famous brand) PLC: Vigor from Taiwan Inductor and Switch: CHNT and Schnelder |
| Warranty | One year |
Notice：
1. All QT4-15 block machines need to load into 3 or 4 pcs 40HQ container.
2. QT4-15 block machine also need 1500pcs fiber pallet when produce blocks.
3. QT4-15 mold changeable.
4. All matching machines for QT4-15 are all optional
