Product description

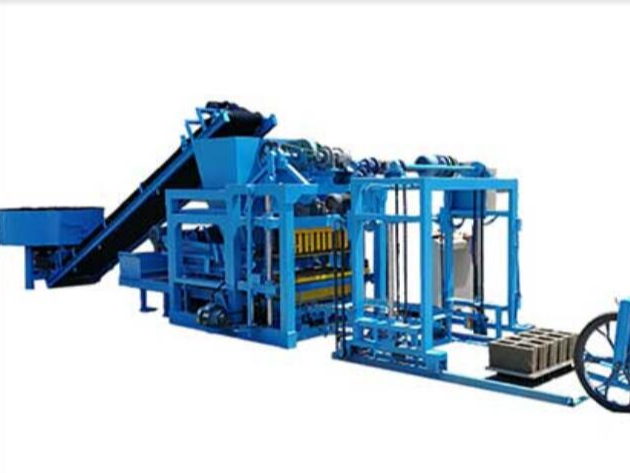

QT4-25 concrete block making machine is one of our sell best machine model, it is automatic block machine, suitable for making all types of hollow blocks, solid block, pavers, curbstones and so on. it is designed for medium scale block project. It's automatic materials feeding, pallet feeding, distributing, brick forming, and finished block pushing out . This model block machine is very economical, popular in developing countries
With less power, it achieves super strong vibration. It adopts full automatic spiral material laying method, so the material in the mould is well-distributed. With simple operation and high productivity, when producing hollow blocks, it has an advantage over the large hydraulic block machines.
Technical Specifications
|
verall Dimension |
3600x1650x2200mm |
|
Main vibration form |
Platform vibration |
|
Cycle Time |
20-30 seconds |
|
Vibrating Frequency |
2800-4500 rolls/minute |
|
Motors Power |
17.9 KW |
|
Pallet Size |
880x550mm |
|
Brick Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
|
Applied Products |
Hollow block, solid bricks, Paving blocks, Curbstone and so on |
|
Applied Fields |
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc. |
Spare Parts
Block and Brick Models
