Product description

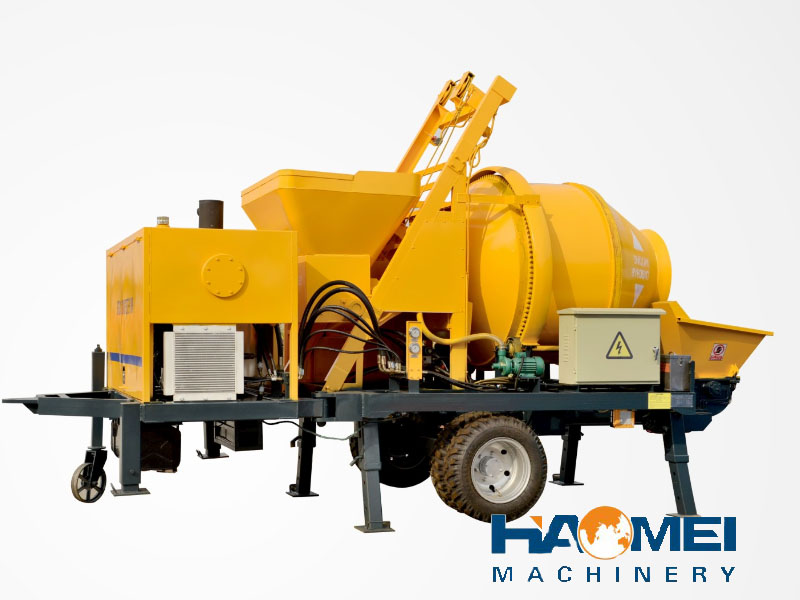

When it comes to Concrete mixer pump, there are two important words: mixer and pump. It is multiple functional pump, which is used to mix and convey the concrete mixture by using pressure along the pipeline continuously.As a matter of fact, Concrete Mixer With Pump is a mobile construction machine which is capable of not only producing concrete, but also pumping it by effectively combining two separate kits into one kit with a truck-mounted mixer and pump. This is a sophisticated yet easy-to-use machine, as it is equipped with smart and intuitive electronic systems.
The loader feeds the sand, stone, cement and other materials into the hopper and controls the hopper loading with the remote control. The mixed concrete is directly discharged into the pumping hopper and pumped to the destination through the pumping system. The whole operation is quite simple. Moreover, the concrete mixer pump also has the characteristics with low labor intensity, small investment and high return. Therefore, a reliable and reputable concrete mixer pump manufacturer is very important for your investment.
A concrete mixing pump is ideal equipment for conveying concrete in large construction projects. The cement mixing pump combines the production and conveying of concrete, which can realize the continuous conveying of concrete from site to site. Concrete mixing pumps make full use of pressure to transport concrete through pipes.
Concrete mixers and pumps can achieve rapid and continuous horizontal and vertical conveying of concrete, which will greatly improve the work efficiency of your construction projects.
Technical Data

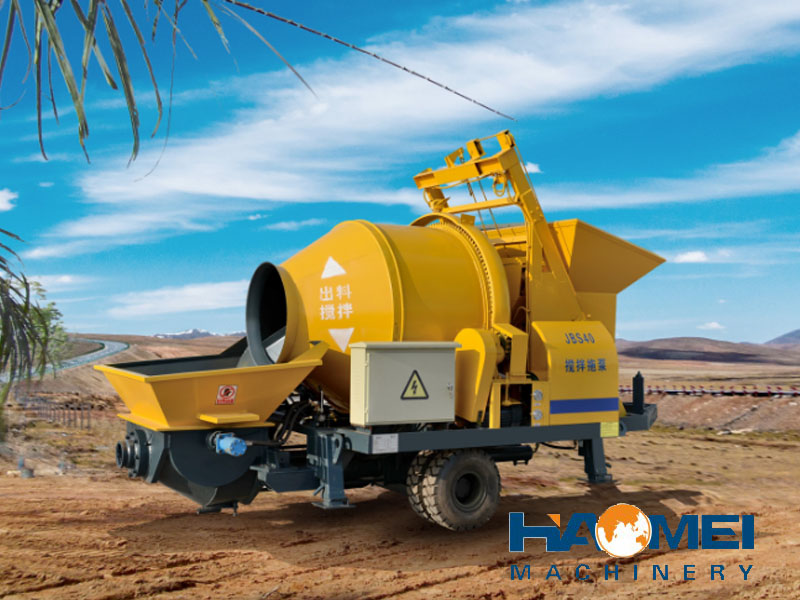

Diesel Concrete Mixer Pump
| JBS30R Diesel Concrete Mixer Pump | JBS40R Diesel Concrete Mixer Pump | LHB40R Diesel Mixer Pump |
|
Capacity: 15 m3/h Diesel Engine Brand: Weifang Diesel Engine Power: 66 kw Concrete Mixer Type: Drum mixer |

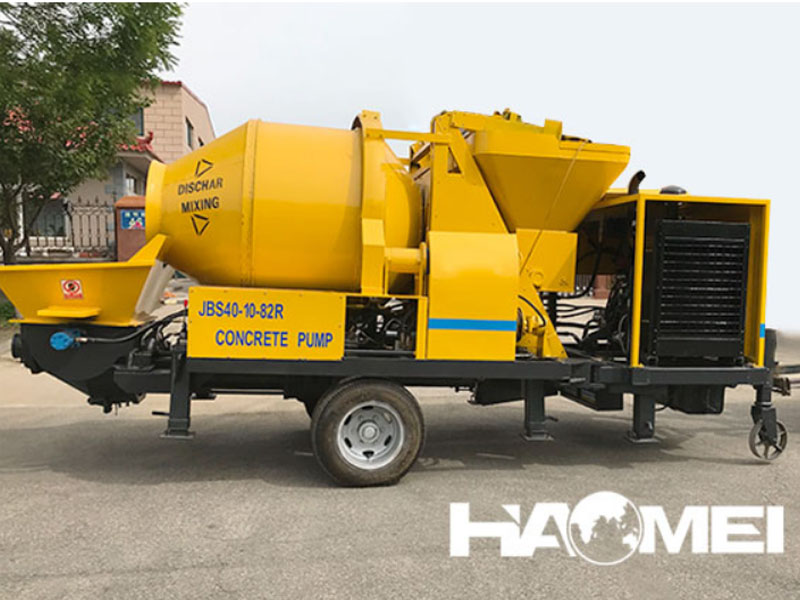

Capacity: 15 m3/h Diesel Engine Brand: Weichai Diesel Engine Power: 82 kw Concrete Mixer Type: Drum mixer |

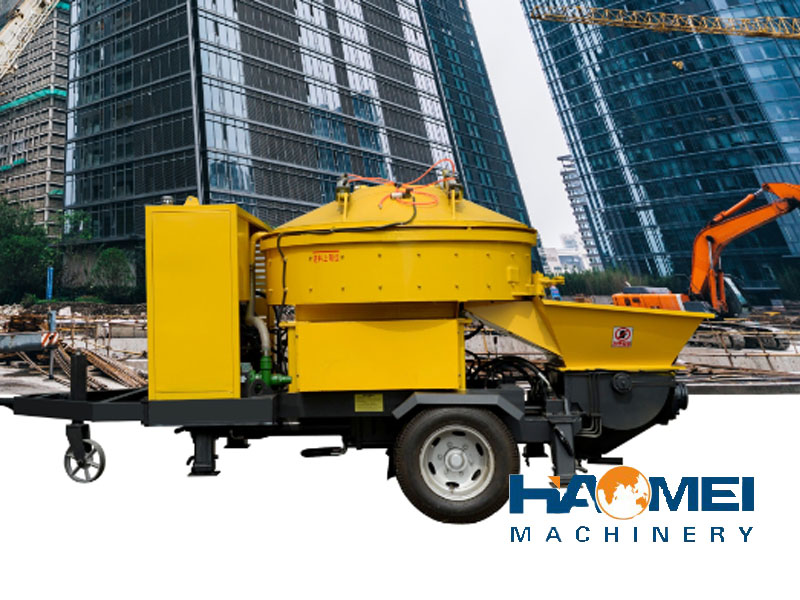

Capacity: 22.5 m3/h Diesel Engine Brand: Weichai Diesel Engine Power: 82 kw Concrete Mixer Type: Planetary mixer |
 |
 |
 |
| Model | JBS30R | JBS40R | LHB40R |
| Production Capacity (m3/h) | 15 | 15 | 22.5 |
| Concrete Mixer Type | Drum mixer | Drum mixer | Planetary mixer |
| Feeding Capacity of Mixer (L) | 560 | 560 | 1200 |
| Discharging Capacity of Mixer (L) | 350 | 350 | 750 |
| Max. Pumping Pressure (Mpa) | 10 | 10 | 10 |
| Diesel Engine Brand | Weifang | Weichai | Weichai |
| Diesel Engine Power (kw) | 66 | 82 | 82 |
| Max. Delivery Distance (V/H) (m) | 80/300 | 80/300 | 80/300 |
| Overall Size (mm) | 5000*1500* 1800 | 5500*2300* 3150 | 3800*2200* 2100 |
| Total Weight (kg) | 4500 | 6000 | 5600 |
Electric Concrete Mixer Pump
| JBS30 Electric Concrete Mixer Pump | JBS40 Electric Concrete Mixer Pump | LHB40 Electric Concrete Mixer Pump |
|
Capacity: 15 m3/h Motor Brand: Rongcheng Motor Power: 37 kw Concrete Mixer Type: Drum mixer |
Capacity: 15 m3/h Motor Brand: Rongcheng Motor Power: 45 kw Concrete Mixer Type: Drum mixer |

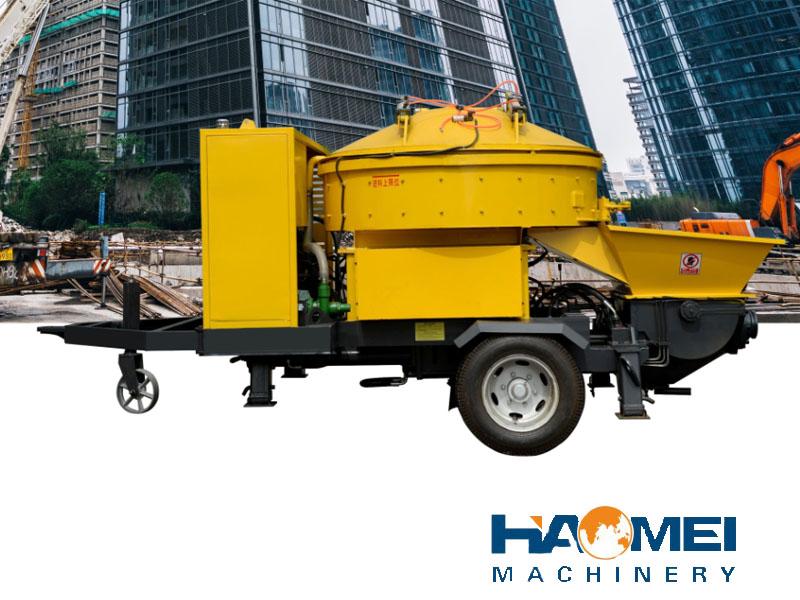

Capacity: 22.5 m3/h Motor Brand: Rongcheng Motor Power: 45kw Concrete Mixer Type: Planetary mixer |
 |
 |
 |
| Model | JBS30 | JBS40 | LHB40 |
| Production Capacity (m3/h) | 15 | 15 | 22.5 |
| Concrete Mixer Type | Drum mixer | Drum mixer | Planetary mixer |
| Feeding Capacity of Mixer (L) | 560 | 560 | 1200 |
| Discharging Capacity of Mixer (L) | 350 | 350 | 750 |
| Max. Pumping Pressure (Mpa) | 10 | 10 | 10 |
| Motor Brand | Rongcheng | Rongcheng | Rongcheng |
| Motor Power (kw) | 37 | 45 | 45 |
| Max. Delivery Distance (V/H) (m) | 80/300 | 80/300 | 80/300 |
| Overall Size (mm) | 5000*1500* 1800 | 4200*2300* 3150 | 3800*2200* 2100 |
| Total Weight (kg) | 4000 | 4500 | 4800 |

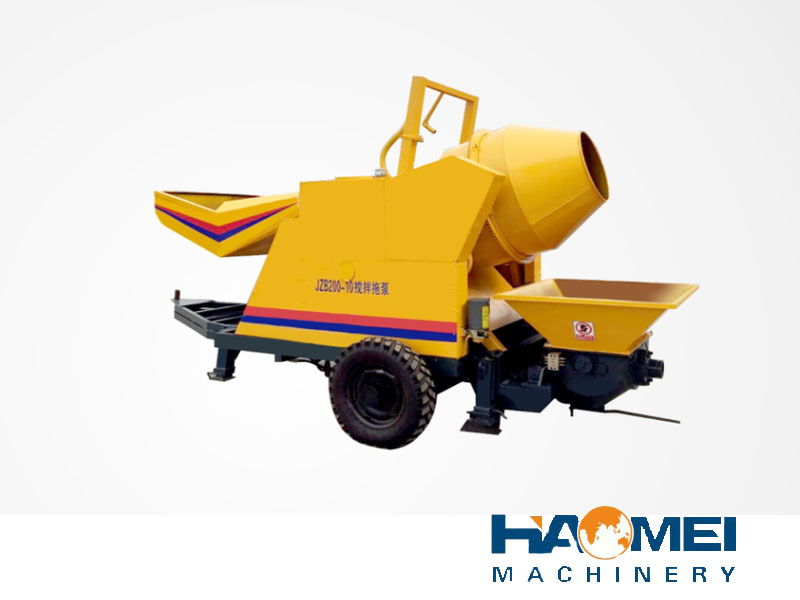

Mini concrete mixer pump
| Model | JBS200 |
| Production Capacity (m3/h) | 8 |
| Concrete Mixer Type | Drum mixer |
| Feeding Capacity of Mixer (L) | 300 |
| Discharging Capacity of Mixer (L) | 200 |
| Max. Pumping Pressure (Mpa) | 10 |
| Diesel engine | YANMAR |
| Engine Power (kw) | 30 |
| Max. Delivery Distance (V/H) (m) | 80/300 |
| Overall Size (mm) | 4100*2200* 2250 |
| Total Weight (kg) | 3800 |

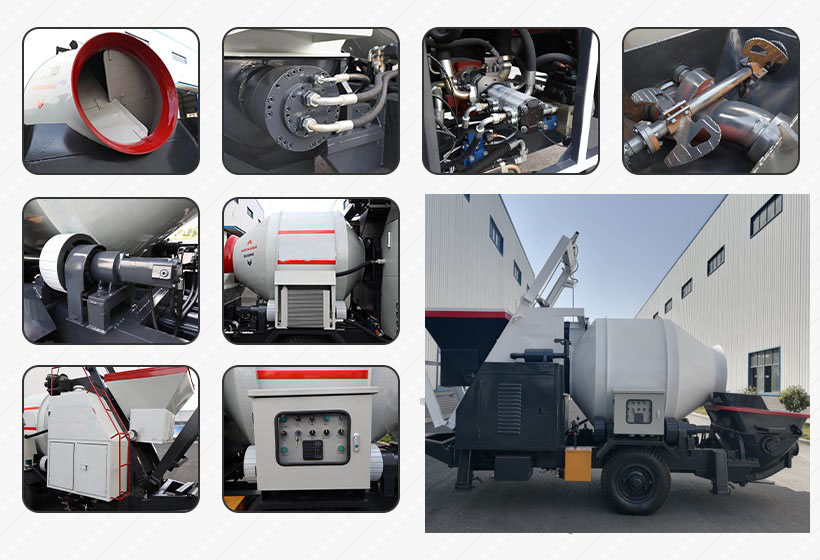

Systems & main parts
Power system
We use the original imported main oil pump from Kawasaki, Korea. Of course, you can also choose Rexroth main oil pump. The diesel pump uses a Weichai diesel engine.
Main pumping system
Open loop for hydraulic oil system. Reliable main oil pump and concrete cylinder.
Distribution system
Adopt brand swing cylinder and S valve. The glass plate and cutting ring are made of special wear-resistant material.
Mixing system
Adopt China Top 1 mixing motor. Wear resistant mixing blades and mixing shaft. The hardness of the left and right half shaft can reach to HB250-280.
Cooling and filtering device
The filtering accuracy of the main pump suction oil filter is 100μm. Adopt high-quality cooler used for aeronautic.
Hydraulic pipe and valves
Adopt Italy Manuli oil hose and Taiwan Yuken hydraulic control valve.
Electrical control system
Use Japan Omron intermediate relay and famous brand proximity switch.
Mixing drum
450L big mixing volume. Adopt 250 thicken channel steel, integrated type, which makes the whole structure very stable. Double hydraulic motors make sure that the driving speed is much faster and the mixing efficiency is much higher.
Pumping pipes
Concrete mixer and pumps are equipped with a complete range of pipes to meet the needs of our customers in different working conditions.
Advantage
Our concrete mixer and pumping machine is equipped with hydraulic oil tank that can be pickling and phosphating treatment of steel pipe. Moreover, the hose and valve block has a special cleaning oil tank.
The diesel cleaning port is first treated with high temperature, and then blown with a pressure air pump to ensure that no impurities are left. This really ensures that the oil quality of the hydraulic oil inside the system is clean, the equipment failure rate is lower, and the service life of the system is longer.
Before delivery, the workers debug the cement mixer with pump, and pump water for 8 hours, and divide it into three sections: high, medium and low pressure to test the pressure to ensure the stable operation of the whole machine.
Our mobile concrete mixer with pump is equipped with an energy storage device and a current compensator, which has a certain compensation effect when the voltage and current are unstable.
The pumping pipes are seamless high-pressure pipes. The diameter of the pipe is 125mm and the thickness is 4.5mm (of which the elbow is 5mm). Equipped with C-type quick pipe clamp, it is easy to install and disassemble, save time and improve work efficiency.

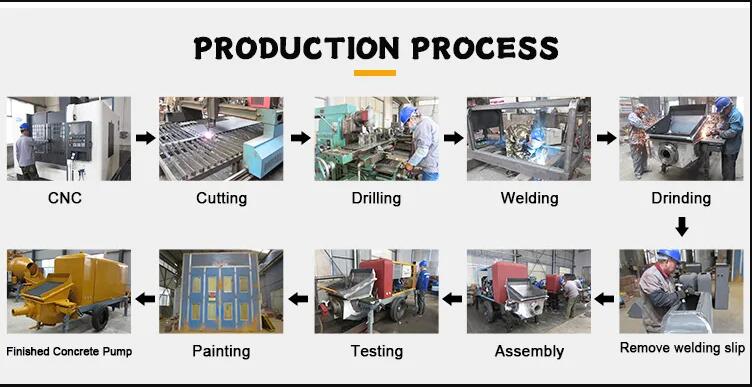

Production process
