Product description
Mobile Concrete Plants are work machines that can perform all the functions of stationary concrete plants. This facility is ideal for short-term projects and preferred by companies that provide mobile services without a specific field of study. These machines, which save time and cost in operations, have been among the preferences of many companies in different sectors. Haomei Machinery Company, one of the leading names in the ready-mixed concrete sector, has succeeded equally well in the production and services of the mobile concrete plant. Our company, which adopts European standards as a criterion in all of its production machines, does not give any applications and materials that harm the environment during manufacturing. Mobile Concrete producers have an average production capacity of 25 m3 to 75 m3 concrete per hour, which is ideal for businesses whose work area is constantly changing and need to produce concrete with moderate capacity.
Technical Data
| Type | YHZS25 | YHZS35 | YHZS60 | YHZS75 | |
|---|---|---|---|---|---|
| Theoretical production capacity(m³/h) | 25 | 35 | 60 | 75 | |
| Concrete mixer | Type | JS500 | JS750 | JS1000 | JS1500 |
| Power(KW) | 24.75 | 38.6 | 51 | 65.5 | |
| Discharging capacity(L) | 500 | 750 | 1000 | 1500 | |
| Aggregate size(Pebble/Macadam)(mm) | 80/60 | 80/60 | 80/60 | 80/60 | |
| Aggregate Bin volume(m³) | 3.2 | 7.3 | 8.3 | 12 | |
| Weighing Accuracy | Aggregate (KG) | ±2% | ±2% | ±2% | ±2% |
| Cement(KG) | ±1% | ±1% | ±1% | ±1% | |
| Fly ash(KG) | ±1% | ±1% | |||
| Water (KG) | ±1% | ±1% | ±1% | ±1% | |
| Additive(KG) | ±1% | ±1% | ±1% | ±1% | |
| Total power(KW) | 50Kw | 64Kw | 85Kw | 110KW | |
| Discharging height(M) | 2.8 m | 2.8 m | 2.8 m | 3.8m | |
| Gross weight(T) | 12 | 16 | 20 | 50 | |
Features
1. Easily to be moved to different working sites;
2. It will take short time to be installed and commissioning;
3. It will save the cost for purchasing the mixing trucks and make the transport time shorter and operation cost lower;
4. The concrete quality will not be affected because of the long distance transportation;

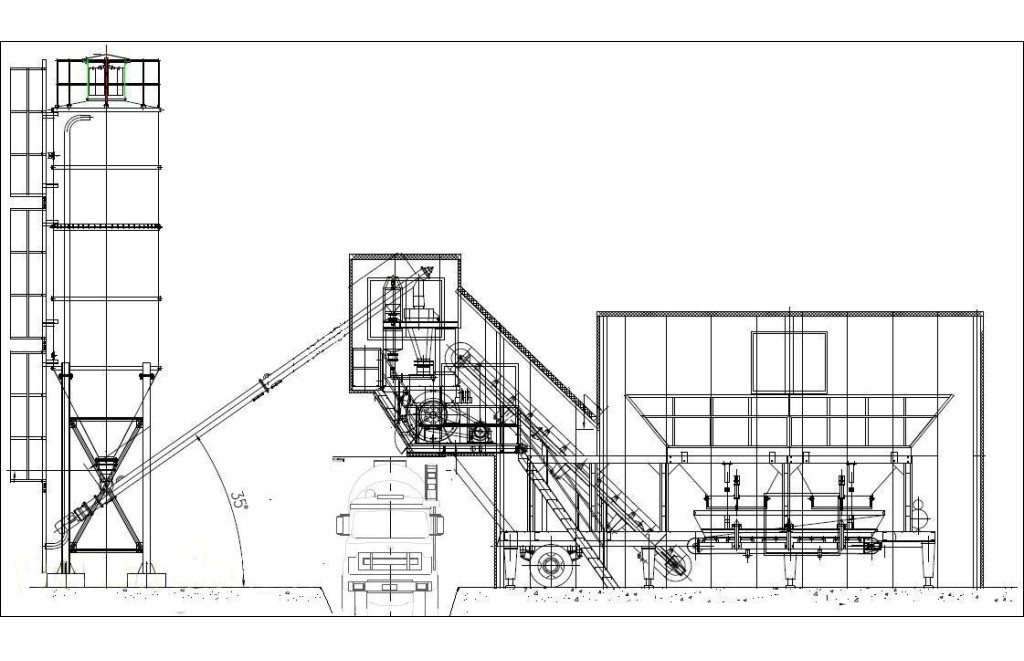

Main Components

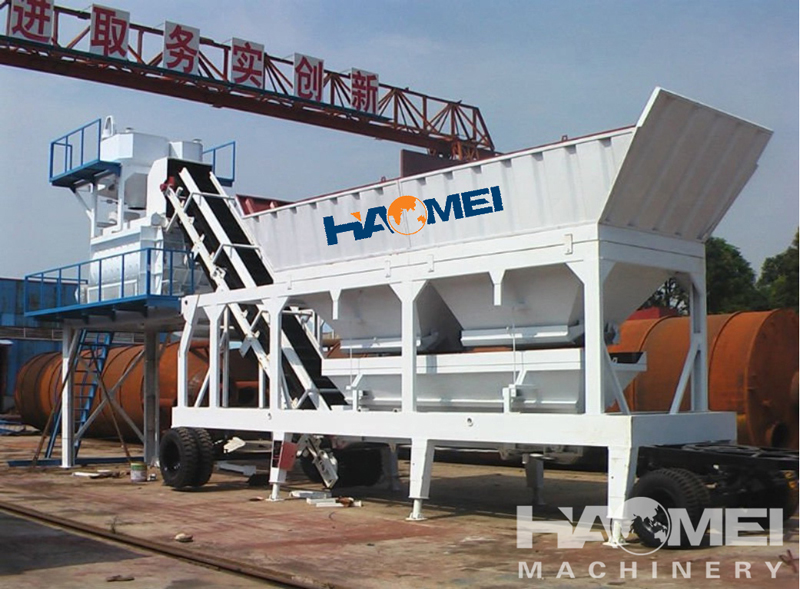

The mobile concrete mixing plant is a concrete production equipment that integrates the material storage, weighing, conveying, mixing, unloading and automatic control systems into a trailer unit.
At present, portable concrete plants are mainly divided into two types: traction type and trailer type. They usually uses a two-stage process and cumulative measurement method. Material silo is a big burden of the mobile plant, and so reducing the capacity of the silo is a necessary means to reduce the weight and volume of the equipment. But sometimes when the volume of the silo is reduced, the materials feeding may be interrupted. Therefore, a supplying device with good fluidity is required
1. Chassis
The chassis contains the towing pin and parking legs of the trailer truck; the metering scale of the mixer, cement and water admixture is placed on the chassis; the inspection walking platform, railings, etc. are attached to the periphery.
2. Control Room
The control room is at the bottom of the chassis, and is equipped with a fully automatic control system for the mixing plant. All its control circuits do not need to be disassembled.
3. Ingredient Measurement System
This system is located at the back end of the whole station. The upper part is an aggregate (sand, stone) storage hopper, and a heightening plate is set to increase the storage capacity. The door is opened pneumatically in sequence; the bottom is equipped with a walking rear axle and frame legs when working.
4. Belt Conveyor Frame
The frame is a truss structure connecting the chassis and the aggregate batching frame, and a belt frame is installed inside to integrate the main frame, the belt frame and the batching frame into a whole.
5. Peripheral Components
Peripheral parts such as cement silo and screw conveyor are integral parts during work or transportation, and can be transported and disassembled as a whole without disassembly.
6. Mixer
Generally, JS-type mixer is used, which can quickly and evenly mix to complete the fluidity and dry hard concrete.
