1. Planetary concrete mixer

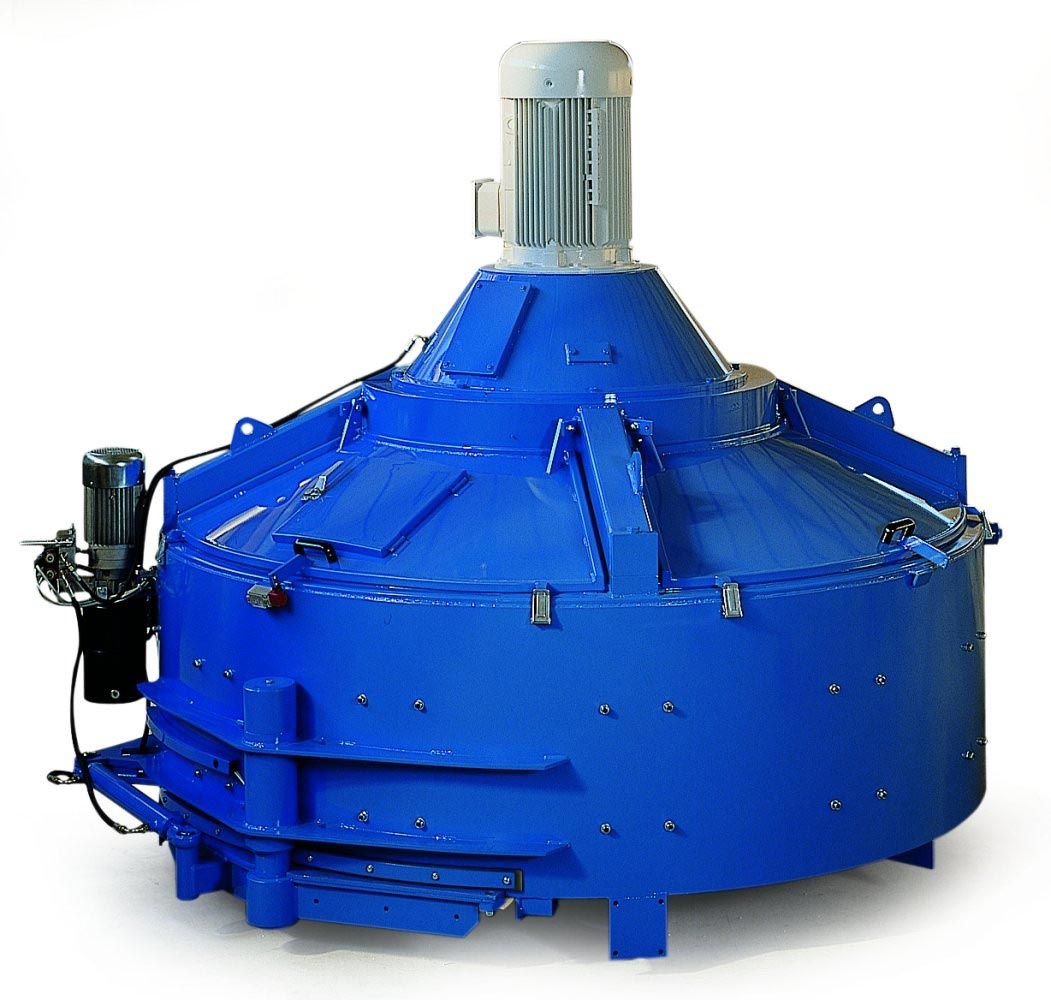

Planetary concrete mixer

Planetary concrete mixer

Planetary concrete mixer adopted Germany technique used for concrete mixing. It is not only being used for concrete, but also for refractory material mixing, PVC piping industry etc. It is really suitable for the concrete block making factory, precast tub

  • TEL

    +86 13598417520

  • email

    wade@haomei.biz

  • PDF Download

    PDF Download

Product description

A planetary concrete mixer is an industrial equipment that can produce large quantities of dough continuously, replacing manual labor. It is ideal for mixing high performance and dry hard materials, and is widely used in building materials and other industries. Planetary mixers have one or two mixing stars that rotate themselves while also rotating around a central point, allowing each arm to cover the whole mixer floor in a number of revolutions

Planetary concrete mixer

Technical Data

Model MP330 MP500 MP750 MP1000 MP1500 MP2000 MP2500 MP3000
Output Capacity (L) 330 500 750 1000 1500 2000 2500 3000
Input Capacity (L) 500 750 1125 1500 2250 3000 3750 4500
Input Mass (kg) 800 1200 1800 2400 3600 4800 6000 7200
Mixing Power (kw) 15 18.5 30 37 55 75 90 110
Discharge Power (kw) 2.2 2.2 2.2 3 3 4 4 4
Lifting Power (kw) 4 4 7.5 11 15 22 -- --
Skipper Capacity (L) 580 870 1300 1740 2610 3480 -- --
Skipper Mass (kg) 870 1305 1950 2610 3615 5220 -- --
Skipper Speed (m/s) 0.25 0.25 0.25 0.25 0.25 0.25 -- --
Weight (kg) 1700 2000 3500 6000 7000 8500 10500 11000
Dimension (mm) 1910 x 1590 x 1747 2220 x 2071 x 1880 2581 x 2336 x 2195 2891 x 2602 x 2217 3223 x 2902 x 2425 3625 x 3230 x 2630 2893 x 3550 x 2695 3893 x 3550 x 2975

Features

1. Skip hopper hoisting system can be chosen according to customer’s actual requirements
2. Homogeneous mixing performance
3. Ni-hard cast iron blades are more wearable
4. Manual discharge is available in case of electric failure
5. More than one discharging gate can be opened. Usually maximum three discharging doors are available
6. Large access facility is for easy maintenance and cleaning
7. The key-operated safety switch and limit switch guarantee safety

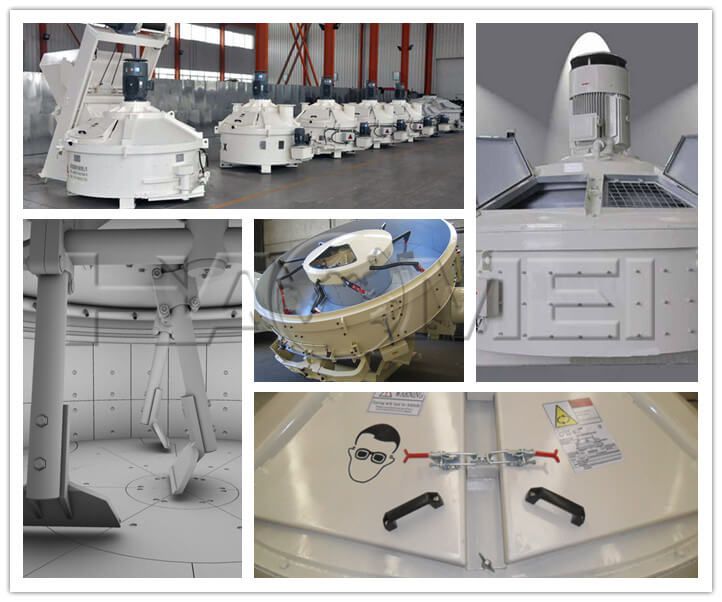

Drawing

Planetary concrete mixer

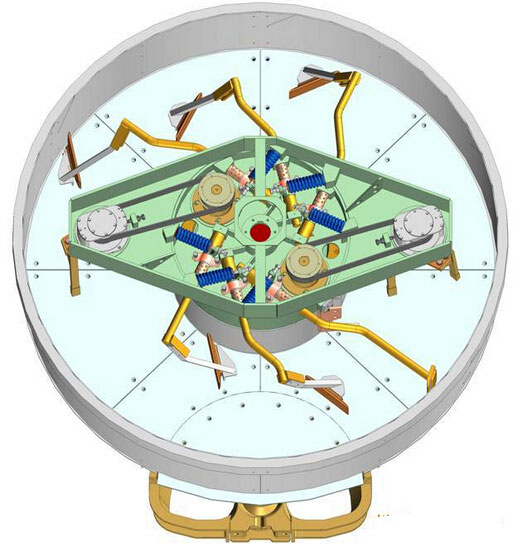

working principle

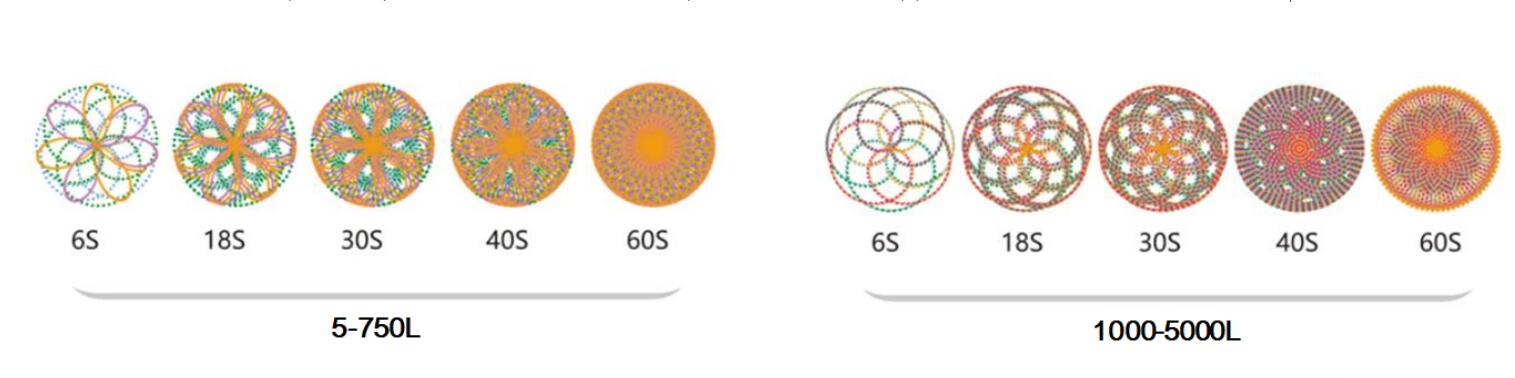

The vertical shaft mixer completes the mixing and stirring of the material through the stirring arm and the stirring blade, The stirring blade realizes the stirring function through revolution and rotation, which greatly improves the stirring quality and stirring speed of the material, and the motion track covers the entire mixing drum, the material is mixed very uniformly.

Planetary concrete mixer

The planetary rotation and the side scraper revolve in the opposite direction at the same time.

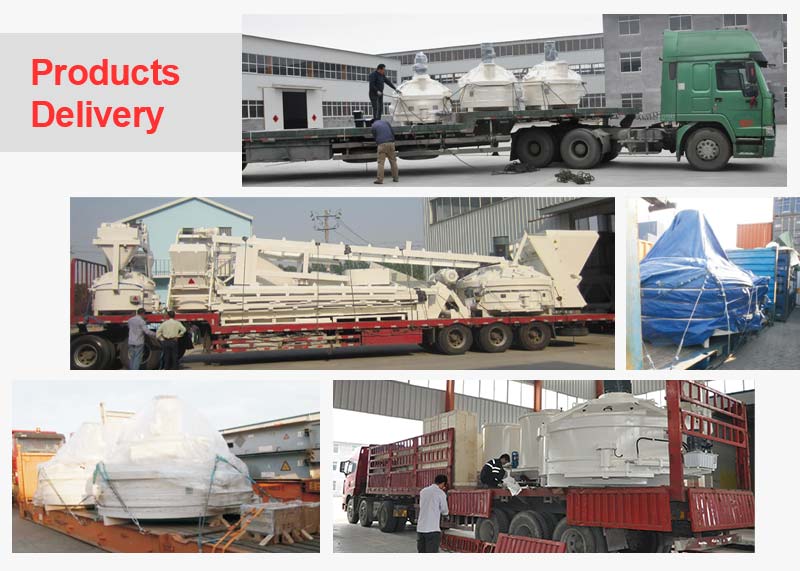

Packaging and Delivery

Planetary concrete mixer
