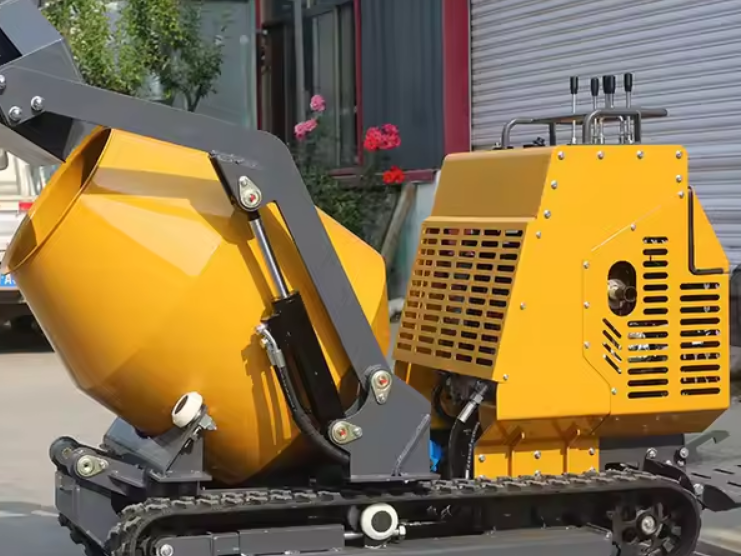

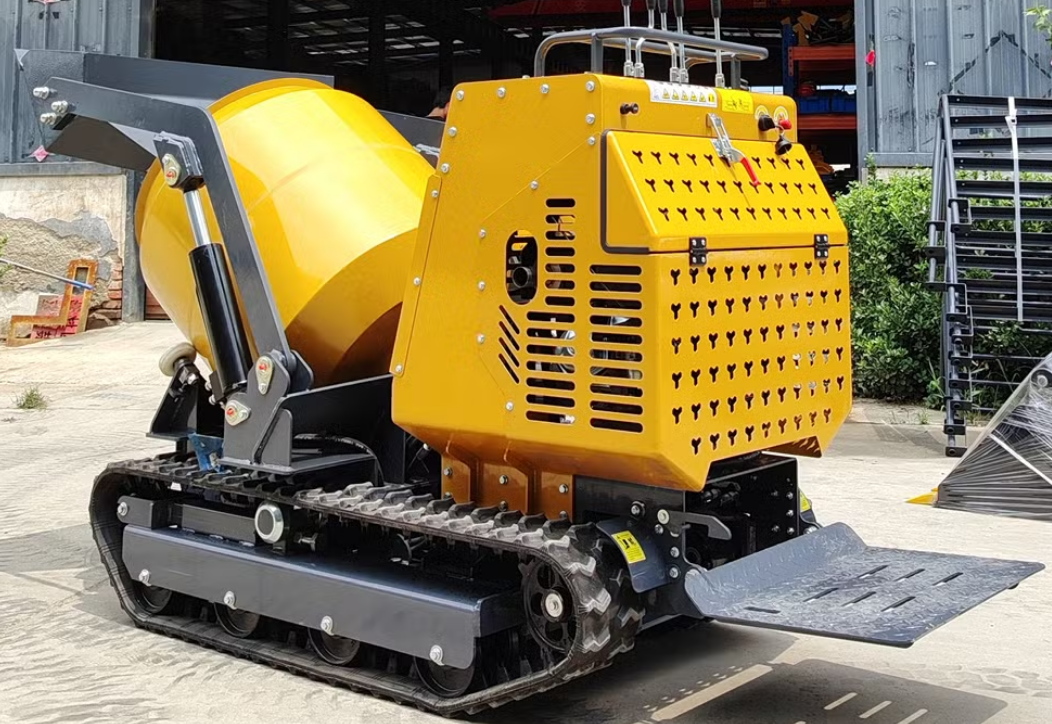

Product description
The Small Crawler Concrete Mixer With Loader is very useful in the agriculture and forest industry working It can save much manual working and high efficient;it is widely used by so many customers. Free crawler transporter in mud, cicy roads,Dump design,Crawler walking,Diesel engine to walk,A great deal of extended use power.Specific size can be customized according to demand.Carrying capacity is strong,Climbing ability,simplicity of operator,Maintenance easy.
Technical Data
| Engine Model: | Briggs&Stratton Pioneer |
| Engine Type: | Single cylinder, OHV,4-stroke, air cooling |
| Displacement: | 420CC |
| Rated Power: | 13.5HP/3600rpm |
| Fuel Type: | 92 # Gasoline |
| Fuel Tank capacity: | 6.5 L |
| Dimensional data | |
| Total Weight: | 750 KG |
| Machin size: (Without pedal,without bucket) | 1800*900*1500 mm |
| Bucket size with foot pedal: | 2500*900*1500 mm |
| Chassis width: | 850 mm |
| Mixing tank data | |
| Diameter of irrigation port: | 460mm |
| Mixing tank length: | 800mm |
| Mixing tank diameter: | 720mm |
| Tank capacity: | 0.3 m³ |
| Dumping method: | Hydraulic Tipper |
| Mixing tank dumping angle: | 100 ° |
| Track data | |
| track width: | 180 mm |
| Track grounding length: | 1000 mm |
| Chassis ground clearance: | 110 mm |
| Bucket data | |
| Bucket length: | 820 mm |
| Leakage port length: | 500 mm |
| Leakage port width: | 80 mm |
| walk | |
| Walking Speed: | 3 km/h |
| Minimum Turning radius: | 1300 mm |
| Track gauge: | 670 mm |
| Climbing abillty: | 25 ° |
Advantages of Crawler Concrete Mixer
Best quality concrete mixer automatic self-loading cement mixer machine factory price concrete mixer
1.This is a miniature mixer truck, which is mainly used for small projects on non-hardened pavement in small spaces, saving labor costs.
2.It adopts full hydraulic operating system, turns on the spot while walking, stepless speed change, and the slope stays at 25 degrees, so it can work on sloped sites.
3.Self-contained modular, tipping compartment, one machine with two functions, can be self-feeding mixing or self-feeding transportation.
4.Briggs Stratton engines and motors imported from the United States meet European and North American standards.
