Product Description
The belt conveyor concrete batching plant is a versatile and indispensable asset for any construction project. With its advanced technology and robust design, this plant has revolutionized the way concrete is produced and transported on-site. Whether it's a large-scale infrastructure project or a smaller residential construction, our belt conveyor concrete batching plant stands out as the ideal solution. Belt conveyor concrete batching plant is usually used for commercial concrete supplying business or big projects where huge amount high-quality concrete is needed. For Belt Type Concrete Batching Plant, each aggregate has its own scale, so the weighing accuracy and efficiency is remarkably improved. With the help of transitional hopper, the working efficiency of the whole batching plant can be 15% higher than that of the skip hoist type of batching plant. Belt conveyor concrete batching plant is equipped packing exterior for aggregate loading belt and mixing tower; Both cement silo and mixing tower have their own filter system. These measures ensure the operation of the whole batching plant is environment friendly. For belt conveyor concrete batching plant, we have 60m3/h, 90m3/h, 120m3/h, 180m3/h, 240m3/h.
Concrete conveyor systems are an invaluable tool on any construction site. These systems streamline the process of moving concrete from the mixing plant to the desired location, reducing labor costs and increasing productivity. They are particularly useful for large-scale projects where speed and precision are crucial, offering a reliable and continuous flow of concrete. For those operating a belt conveyor concrete batching plant, the integration of a conveyor system can significantly enhance operational efficiency. These plants utilize belt conveyors to transport raw materials and mixed concrete, ensuring a seamless and uninterrupted workflow. The use of belt conveyors minimizes the risk of material segregation and ensures consistent quality in the produced concrete. This system is ideal for high-volume production and is known for its durability and low maintenance requirements.
Belt type concrete mixing plant has characteristics of stable concrete transportation, precise materials batching and high working efficiency. Therefore it has wide application in commercial concrete production. In the structure, it has long belt to transport batched aggregate, thus it has large land occupation. If you want to invest such a concrete production equipment, you need to prepare a large space. Now let’s learn about types of belt type concrete batching plants, so that you can choose a right one
Technical Data
| Model | HZS60 | HZS90 | HZS120 | HZS180 |
| Production capacity (m3/h) | 60 | 90 | 120 | 180 |
| Concrete mixer | JS1000 | JS71500 | JS2000 | JS3000 |
| Aggregate feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor |
| Aggregate size (mm) | 80/60 | 80/60 | 80/60 | 80/60 |
| Discharging height(m) | 4.1 | 4.1 | 4.1 | 4.1 |
| Aggregate weighing accuracy (%) | ±2% | ±2% | ±2% | ±2% |
| Cement weighing accuracy (%) | ±1% | ±1% | ±1% | ±1% |
| Fly ash weighing accuracy (%) | ±1% | ±1% | ±1% | ±1% |
| Water weighing accuracy (%) | ±1% | ±1% | ±1% | ±1% |
| Additive weighing accuracy (%) | ±1% | ±1% | ±1% | ±1% |
| Total weight（T） | 28 | 40 | 65 | 88 |
| Total power(T) | 110 | 156 | 200 | 260 |
| Control system | Computer | Computer | Computer | Computer |

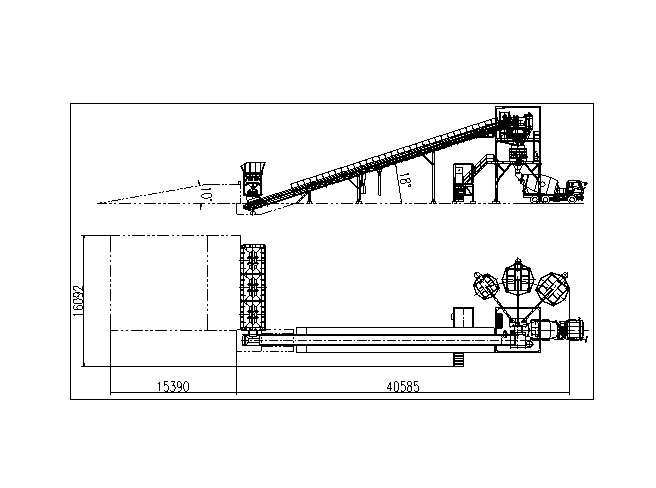

Structure
Part of Configurations Features:
Mixing System:
1) Our JS Series mixer is with 9 technical patents, it is with strong mixing power, high mixing evenness and high productivity. It suits for mixing dry hard, half dry hard, plastic, and other ratios of concrete.
2) The mixing blade and liner is made by high wearing-resistance chromium-manganese alloy.
3) Both the lubrication system and main shaft driving system referes to Italian technology.
4) The hydraulic discharging door angle is adjustable.
5) The shaft end sealing system is by multi-sealing structure effectively prevents leakage and guarantees the continuous long running of whole mixing system.
6) Motors and speed reducers are of China Famous Brand.

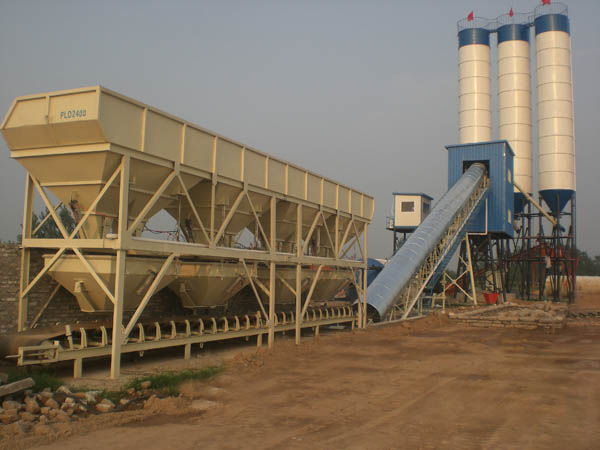

The Batching and Feeding System:
1) The PLD series batching machine is with choice of accumulated weighing or pneumatic independent weighing system.
2) The batching aggregates can be 2-5 types as per the unique needs of customers.
3) The sensors for the weighing system are of China Famous Brand with assured high weighing accuracy and stability.
Weighing System:
1) Apart the standard water, cement and additive weighing system, we can add ash coal and mineral powder weighing system as per requirement of Buyer for commercial concrete.
2) The sensors for the weighing system are of China Famous Brand with assured high weighing accuracy and stability.
3) The pneumatic butterfly valve is full aluminum for high performance and forever non-corrosion.
The Centralized Control System:
We use the international advanced full auto control models of integration industry computer or normal full auto SIMENS PLC+PC model. It is with features of strong anti-interference ability, high accuracy, high reliability and stability, and low failure.
