Product Description

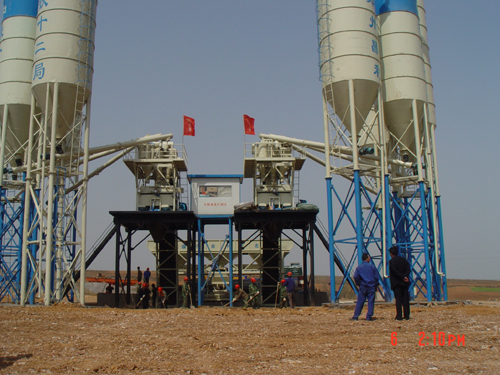

The double host concrete mixing plant is a batching machine shared by two hosts, and the material feeding to the mixer is controlled by the distributor. This set of equipment is controlled by a set of control system. If one main machine fails, the other can be operated alone, which is very suitable for road and bridge construction.
According to the number of mixer points, batching plant can be divided into single-and dual-host host station batching plant, double-host batching plant model name for the 2HZS series of concrete batching plants, such as 2HZS25 concrete mixing plant expression means with two JS500 mixing host The theoretical productivity is 2 * 25m³ / h for the double-host batching plant, and the two-master batching plant is a good supplement to the same type of batching plant
Technical Data
| rum | Bucket type | |||
| Hzs-25 | Hzs-35 | Hzs-50 | Hzs-75 | |
| Theoretical Productivity (m³/h) | 25 | 35 | 50 | 75 |
| Mixer Model (mixer discharging capacity) | JS500 | JS750 | JS1000 | JS1500 |
| Motor Power (kW) | 18.5 | 30 | 2×18.5 | 2×30 |
| Cycle Period (s) | 67 | 72 | 72 | 72 |
| Nominal Capacity of Mixer (L) | 800 | 1200 | 1600 | 2400 |
| Max.aggregate Size (mm) | Φ60 | Φ60 | Φ60 | Φ80 |
| Aggregate Silo Capacity (m³) | 3×3 | 3×5 | 3×8 | 3×12 |
| Category of Aggregate (Optional) | 3 | 3 | 3 | 3 |
| Powder Lot Bin Capacity (t) | 1×50 | 1×50 | 1×100 | 2×100 |
| Material Discharging Height (m) | 3.8 | 4.1 | 4.1 | 4.1 |
| Accuracy of Aggregate (kg) | (300~1500)±2% | (300~1500)±2% | (600~3000)±2% | (1000~3000)±2% |
| Accuracy of Cement (kg) | (100~300)±1% | (100~300)±1% | (250~900)±1% | (300~1800)±1% |
| (60~150)±1% | (60~150)±1% | (80~300)±1% | (200~800)±1% | |
| Accuracy of Water (kg) | ||||
| / | (8~20) | (8~20) | (15~80) | |
| Accuracy of Addtive (kg) | ±1% | ±1% | ±1% | |
| Srandard Reference Weight (Ton) | ≈15 | ≈18 | ≈23 | ≈30 |
| Installed Capacity (kW) | ≈65 | ≈75 | ≈100 | ≈140 |
| Electricity Standard(Optional) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Features
1. Mixing host and aggregate upgrade using two JS750-type double-shaft forced concrete mixer, mixing the following materials can be used, mixing good quality and high efficiency.
2. Aggregate ingredients using HPD1200A-type ingredients, accurate measurement, high production efficiency.
3. Powder using electronic scales measurement, ingredients, high precision.
4. Water flow measurement, simple and practical, high-precision ingredients.
Applications
double host oncrete batching plants are widely used in the construction of highways, bridges, power stations, and dams where there are field construction operations. It can be used to mix dry hard, semi-rigid, plastic and various ratio concrete, greatly improve the quality of concrete. It can also be used with dump trucks, and concrete mixer trucks. At the same time, it can be restructured according to the user's special requirements to meet the user's needs
