1. HZS25 Concrete Batching Plant
HZS25 Concrete Batching Plant

HZS25 Concrete Batching Plant

The HZS25 concrete batching plant is one of the smallest concrete mixing plants, which can batch and mix raw materials such as cement, sand, and water into concrete mixture. The production capacity of the HZS25 model plant is 25 cubic meters of concrete p

  • TEL

    +86 13598417520

  • email

    wade@haomei.biz

  • PDF Download

    PDF Download

Product Description

The HZS25 concrete batching plant, with a capacity of 25 cubic meters per hour, is a professional solution for ready mix concrete production, accommodating both plastic and dry concrete mixes. Its compact design and modular structure make installation and disassembly quick and convenient. Featuring a JS500 twin-shaft mixer, this plant ensures efficient mixing, uniformity, and ease of operation with minimal maintenance. Using a skip hoist for aggregate transport, the plant optimizes space and land utilization. Customers can choose between a PLD800 aggregate batcher with 2 or 3 bins to suit their requirements. Control options include fully automatic, semi-automatic, or manual systems, with the fully automatic control offering advanced production management capabilities. Ideal for small to medium-sized projects, the HZS25 plant is a versatile choice for various construction and infrastructure applications.

Technical Data

Model

HZS25

Specification

Unit

Value

Productivity

m3/h

25

Capacity of Mixer

m3

0.5

Mixer Power

kw

18.5

Discharge Height

m

3.8(for customers choice)

Aggregate Bin

Quantity

3

Aggregate Bin Capacity

m3

0.8

Max. Weighing Value of aggregate

kg

1500

Max. Weighing Value of cement

kg

300

Max. Weighing Value of water

kg

150

Max. Weighing Value of additive

kg

40

Aggregate Measuring Accuracy

%

2

Water Measuring Accuracy

%

1

Cement Measuring Accuracy

%

1

Additive Measuring Accuracy

%

1

Cement Silo

_

Optional

Cement Screw Conveyor

_

Optional

Cement Silo Capicity

_

Optional

Control Mode

_

Auto/Semi control

Components

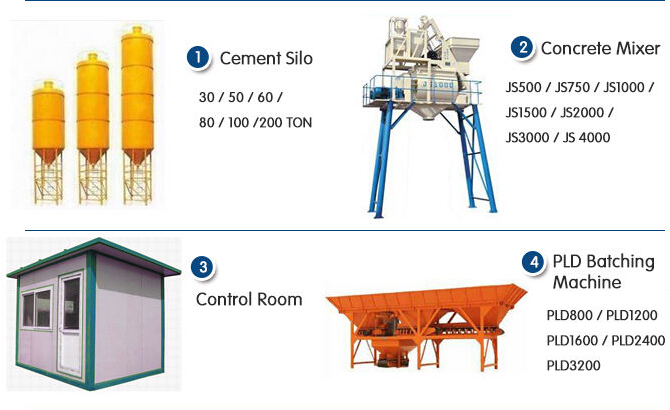

The main components of the HZS25 ready-mixed batching plant are batching machine, aggregate conveying system, mixing system, material weighing system, control system, and material storage system.

HZS25 Concrete Batching Plant

Batching machine: It includes storage hopper, sensor, and conveyor belt
Aggregate conveying system: The aggregate conveying system of the HZS25 mixing station adopts the lifting hopper feeding mode, which has the advantage of occupying less space and saving on land resources.
Mixing system: This includes the main mixing machine, unloading mechanism, water supply system, transmission system, and reducer. The mixing host used for the main mixer is JS500 mixer, which can mix flowable, dry, and hard lightweight aggregate concrete and various types of mortar.
The mixer has the advantages of reasonable structure, good mixing quality, short mixing time, energy-saving, and has low noise. Weighing system: Includes – weighing hopper, butterfly valve, and sensors
Control system: It is the central nervous system of the whole set of equipment. The control system helps achieve stable operation and reliable performance; the core electrical components use products of world class brands such as French Schneider Company, which guarantees quality performance.
Material storage system: These are the storage methods to store the raw materials for concrete mixing. They are required to store aggregates, powder materials, and admixtures.

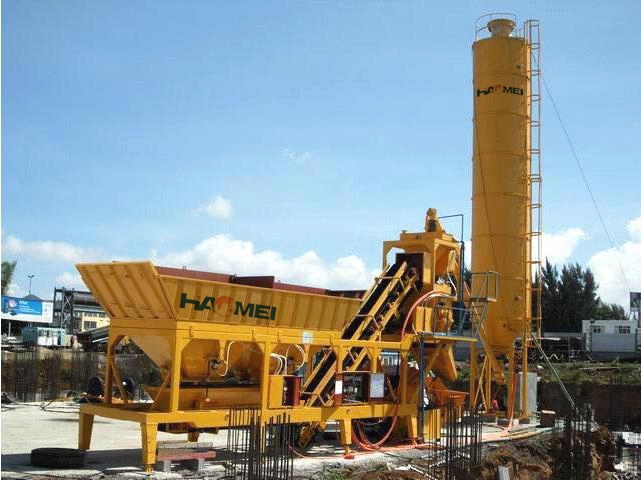

HZS25 Concrete Batching Plant

Advantage

1. Modular organization, assembly and disassembly is rapid, easy for transportation. And we have different layout forms which are suitable for clients’ requirement;
2. Adopt the JS500 twin shafts concrete mixer which work stable and reliable, suitable for different kinds of concrete, high efficiency;
3. All the weighing parts, control parts select the famous brand parts, computerized controlled to guarantee the work performance;
4. All the powder material is transported, weighed, mixer and discharging in a closed working status, so the power and noise are eliminated in a very low level;
5. There is the ladder and platform for the operation and maintenance, and there is high pressure clean system for the mixer;
6. The control system adopts good elements to make sure the system working stable. The system will alarm through different ways if there is something wrong with the system.
