HZS35 concrete batching plant

HZS35 concrete batching plant

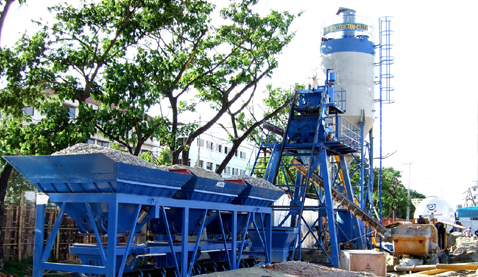

HZS35 concrete batching plant refers to the concrete plant with a JS750 twin-shaft concrete mixing host, a PLD1200 aggregate batching machine, a skip hopper feeder, and other accessories, whose production capacity is 35m3/h

  • TEL

    +86 13598417520

  • email

    wade@haomei.biz

  • PDF Download

    PDF Download

Product Description

HZS35 concrete batching plant (35m3/h) consists of material batching, mixing and electric control system, which is professional equipment for ready mix concrete production, such as plasticity/dry concrete

This type of concrete plant adopts combined structure and modular unit design with the characteristics of compact structure, small footprint, easy transition, etc., therefore it is a small-sized long-term concrete batching equipment and an ideal choice for small-scale construction projects, precast yard and commercial concrete companies.

Its full-automatic control system and manual panel design saves labor cost for users and provides a reliable guarantee for stable and accurate output of concrete products that meet customer needs, meanwhile, which realizes automatic control, production management and report printing of the production process.

The JS750 twin-shaft concrete mixing host of HZS35 produces 0.75m3 concrete mix per batch, and the mixing time is only 72 seconds, which can obtain the largest amount of fully uniformly mixed concrete products in the shortest time. At the same time, this batching plant transports aggregates by skip hoists, which is benefit to reduce footprint and enhance land utilization.

The PLD1200 batching machine of HZS35 can be installed with 3-4 hoppers according to standard configuration, which can be customized according to the production requirements of concrete. Its work platform adopts an all-steel structure. The discharge height can be customized according to the production requirements. A cumulative weighing system is installed to ensure the aggregate can be weighed precisely, thereby ensure the high quality of concrete products.

Technical Parameters

Specification Value
Productivity(m3/h) 35
Capacity of Mixer(m3) 0.75
Mixer Power(kw) 18.5
Discharge Height(m) 3.8(for customers choice)
Aggregate Bin(Quantity) 3
Aggregate Bin Capacity(m3) 1.2
Max.Weighing Value of Aggregate(kg) 850
Max.Weighing Value of Cement(kg) 500
Max.Weighing Value of Water(kg) 300
Max.Weighing Value of Additive(kg) 30
Aggregate Measuring Accuracy(%) 2
Water Measuring Accuracy(%) 1
Cement Measuring Accuracy(%) 1
Additive Measuring Accuracy(%) 1
Cement Silo(-) Optional
Cement Screw Conveyor(-) Optional
Cement Silo Capacity(-) Optional
Control Mode(-) Optional
