Product Description

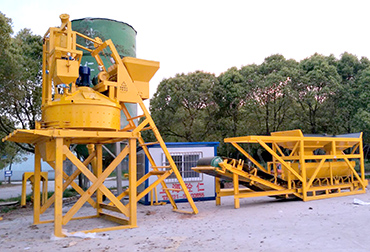

mini concrete batching plant is a batching plant developed by haomei for small and medium-sized construction projects after careful research. It meets the needs of customers invest in small construction projects well for the following features: modular design, small floor coverage, easy installation and transportation.
mini Concrete batching Plant can be implied from the name, which is a complete set of concrete production equipment with small size,production capacity and specially designed for pint-sized projects has the advantages of lower cost, more spacious space , easier installation,and so on. Without compatible with its miniaturization is the functional maturation, it can be equipped with (semi-)automatic control system.Therefore,it is widely used in more and more ready-mixed and precast concrete factories.
The number of small and medium-sized construction projects is increasing with the obvious development of social economy, and the demand for small-scale concrete mixing plants is increasing day by day. Compared with the traditional stock-sized concrete mixer, the concrete produced by the small-sized concrete batching plant is mixed evenly and in higher quality, which can make the built construction solider and extend its life
Technical Data
| rum | Bucket type | |||
| Hzs-25 | Hzs-35 | Hzs-50 | Hzs-75 | |
| Theoretical Productivity (m³/h) | 25 | 35 | 50 | 75 |
| Mixer Model (mixer discharging capacity) | JS500 | JS750 | JS1000 | JS1500 |
| Motor Power (kW) | 18.5 | 30 | 2×18.5 | 2×30 |
| Cycle Period (s) | 67 | 72 | 72 | 72 |
| Nominal Capacity of Mixer (L) | 800 | 1200 | 1600 | 2400 |
| Max.aggregate Size (mm) | Φ60 | Φ60 | Φ60 | Φ80 |
| Aggregate Silo Capacity (m³) | 3×3 | 3×5 | 3×8 | 3×12 |
| Category of Aggregate (Optional) | 3 | 3 | 3 | 3 |
| Powder Lot Bin Capacity (t) | 1×50 | 1×50 | 1×100 | 2×100 |
| Material Discharging Height (m) | 3.8 | 4.1 | 4.1 | 4.1 |
| Accuracy of Aggregate (kg) | （300~1500）±2% | （300~1500）±2% | （600~3000）±2% | (1000~3000)±2% |
| Accuracy of Cement (kg) | （100~300）±1% | （100~300）±1% | （250~900）±1% | （300~1800）±1% |
| （60~150）±1% | （60~150）±1% | （80~300）±1% | （200~800）±1% | |
| Accuracy of Water (kg) | ||||
| / | （8~20） | （8~20） | （15~80） | |
| Accuracy of Addtive (kg) | ±1% | ±1% | ±1% | |
| Srandard Reference Weight (Ton) | ≈15 | ≈18 | ≈23 | ≈30 |
| Installed Capacity (kW) | ≈65 | ≈75 | ≈100 | ≈140 |
| Electricity Standard(Optional) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
