Stationary Asphalt Mixing Plant

Product Description

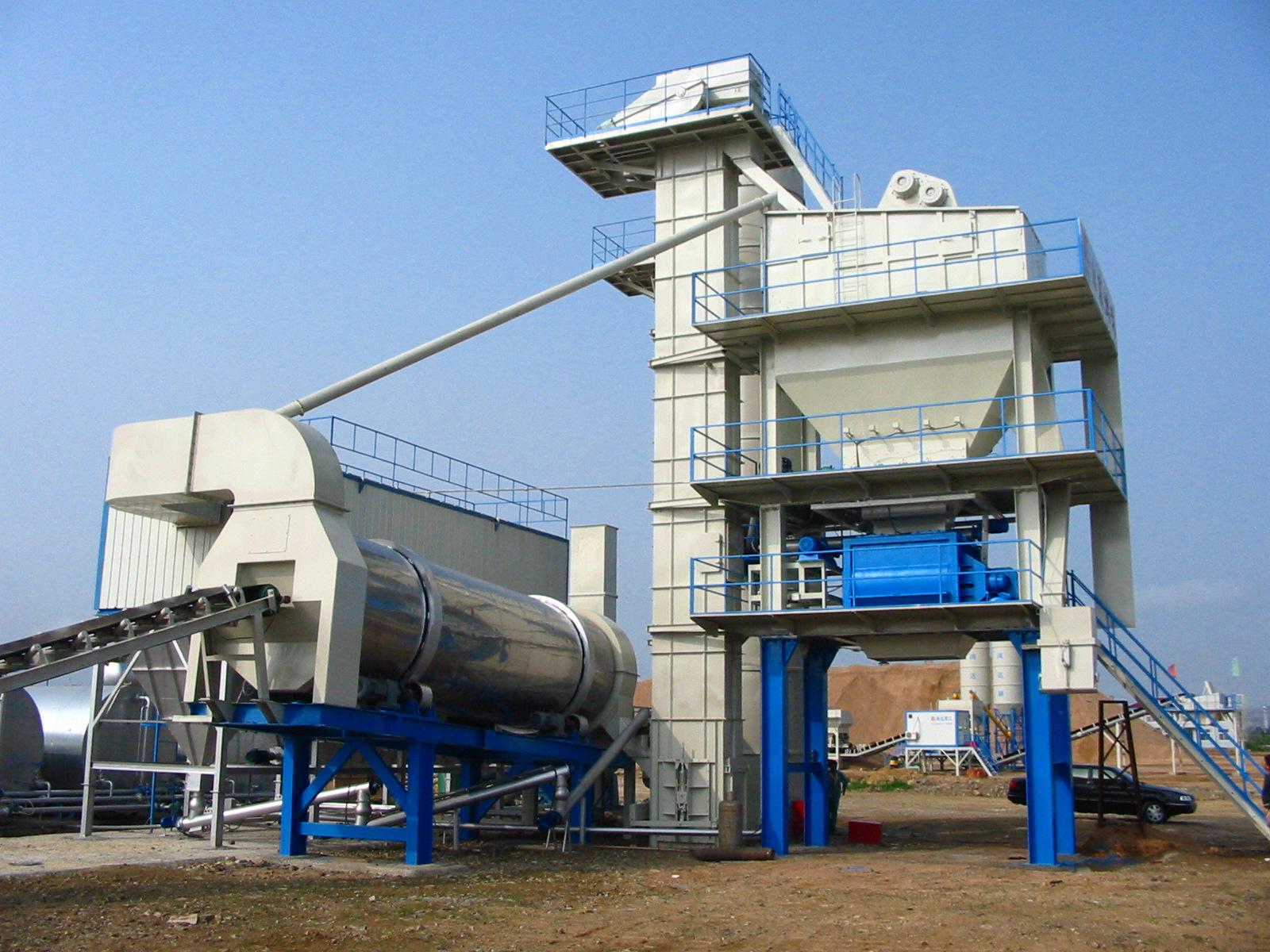

Asphalt batch mix plant is road surface material manufacturing equipment that features interval pauses in the course of prodiction due to its mixer. More accurate weighment, more precise dosing of cold aggregate, bitumen, filler, and other additives ensure the homogeneous final asphalt mixture. LB Series is ideal construction equipment appliable to manufacture paving material that is widely utilized in highway road construction and other civil construction. As a professional manufacturer and exporter, Haomei Machinery is good at producing hot mix plants to clients according to their actual demands.

Technical Parameters

Work Process

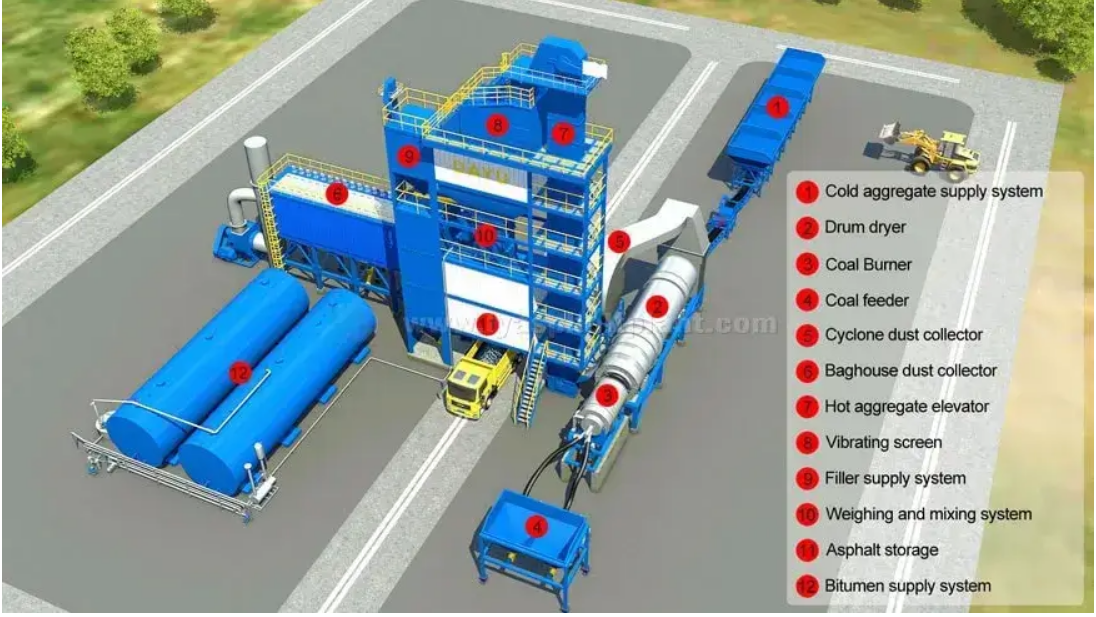

The working principle of stationary asphalt mixing plant is to convey, weigh, mix and discharge the three raw materials: aggregate, asphalt and mineral powder. In order to ensure the quality of the finished product, the operator should strictly follow the operating instructions of the stationary asphalt mixing plant

1.Cold aggregates feed into Drying drum
2. Burner heating the aggregates
3. After dried, the hot aggregates come out and enters the elevator, which transports them up to the Vibrating screen system
4. Vibrating screen system separate the hot aggregate to different specifications, and store in different hot aggregate hoppers
5.Precise weighing of the aggregate, filler and bitumen
6.After weighing, the hot aggregate and filler are released to the mixer, and the bitumen will be sprayed in the mixer
7.After mixed for about 18 - 20 seconds, the final mixed asphalts is discharged into the waiting truck or the special finished asphalts storage silo.

Advantages

The drying drum of this asphalt station uses high quality burner. Through computer control, it can realize the synchronous regulation of gas and air to ensure the efficient use of heat energy, and also effectively protect the ecological environment.

The screen box of the vibrating screen and the bin wall of the hot aggregate bin are equipped with slag wool insulation layer, which can effectively prevent heat dissipation.

This dust removal system consists of a primary volute casing collector and a secondary bag dust collector, which can efficiently purify dusty exhaust gases under continuous loading.

The stationary mixing plant is also equipped with a perfect computer control system, with precise control, flexible operation, automatic recording, printing and tabulation, recipe storage and protection and other functions.

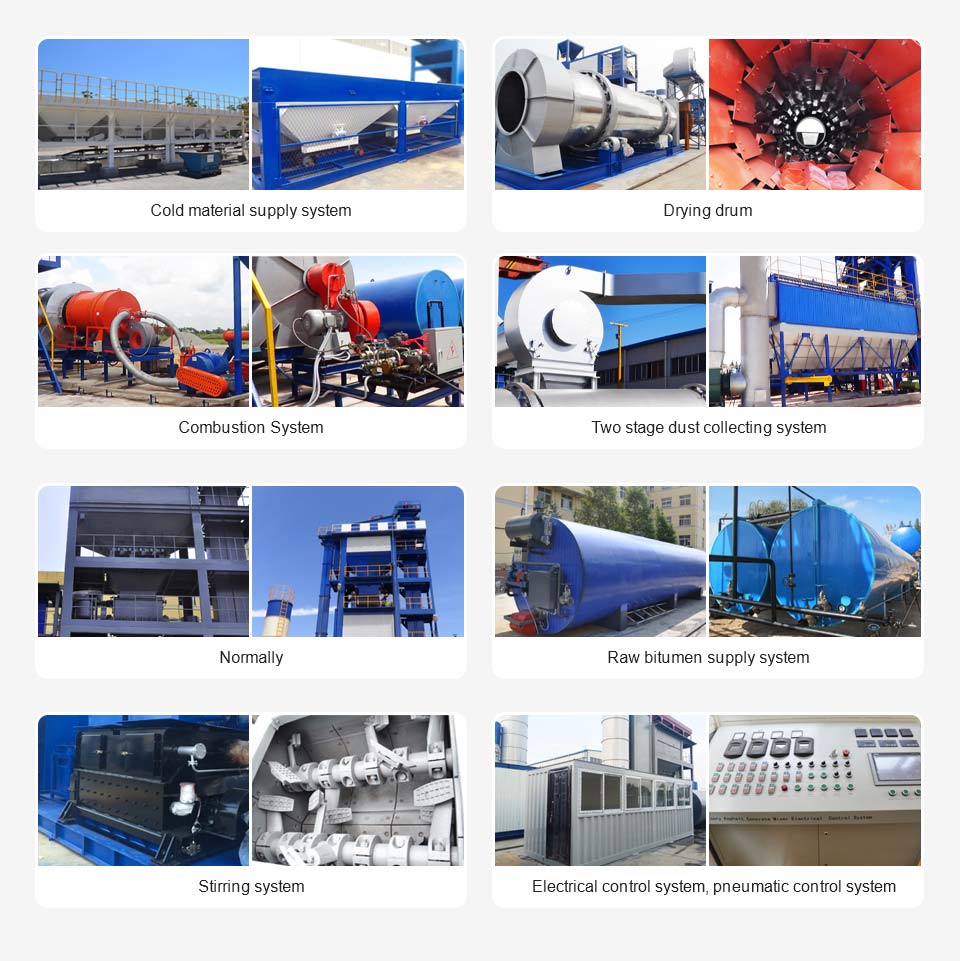

Main Components

1. Aggregate supplying system

① Protective plates on both sides of the aggregate hoppers to avoid sundries getting into the aggregates and conveying belt;
② To make the supplying smoother, vibrators are equipped below each hopper;
③ Adds grid plate at top of each hopper to buffer the shock from aggregates flow, meanwhile it screens oversize aggregates;
④ Conveying belt is protected by dustproof cover to reduce dust emission;
⑤ Adds belt cleaners and pinch rollers to make the aggregates supplying more fluent and accurate, besides, they also extend the belt durability;
⑥ Small vibrating screen is added between belts, to further screen oversize aggregates;
⑦ The supplying system has insufficient material alarm system, ensuring a safe and smooth production.

2. Drying system

① Driving units have auto lubrication device, greatly reduces labor cost;
② Different areas inside the drying drum have different blade configurations, which can handle aggregates in different processes;
③ The rolling rings and rollers are applying high strength wear-resisting material. Deviation preventing rollers for both rolling rings;
④ The cylinder adopts boiler steel and stainless steel skin, which gives it high temperature resistance and non-deformability;
⑤ The cylinder employs thermal insulating rock wool material that can maintain the temperature inside, reducing heat loss.

3. Aggregates elevating system

① The aggregates elevator takes modular design with newest dust sealing structure;
② Elevator applies double plate link chains design, which extends the elevator's service life and reduces maintain frequency;
③ Excellent leakproofness with the moters;
④ Applies famous cycloidal pin gear speed reducers, more powerful and reliable;
⑤ The aggregates slide tunnel adopts damping structure wear-resisting plate link chains to enhance the performance.

4. Screening system

① Vibrating screens that apply world famous vibration motors are completely sealed;
② Aggregate storage bin adopts large bin structure to avoid material overflow;
③ Aggregate bins are separated by high strength wear-resisting plate to avoid aggregates mixing.

5. Weighing system

World famous brand (TOLEDO) weighment devices are adopted to make sure that the measurement error of aggregates is below 0.5%, and the measurement error of bitumen and filler is below 0.25%.

6. Mixing system

① The mixer, mixing blades and liner plates are all using the best materials with high hardness and high abrasion performance;
② The cycloidal pin gear speed reducer has better transmission efficiency and simpler structure.

7. Finished product storage system

① The storage silo has heating device to keep the temperature and quality of final mixture;
② The silo has anti-blocking device to keep asphalt quality.

8. Dust collecting system

① Double dust collecting systems, including the primary volute collector that gets rid of large size dust and secondary baghouse collector that further gets rid of the rest;
② Famous brand induced draft fan is employed, guaranteeing high efficiency yet low power comsumption.

9. Control system

① Fancy control room for operator, nice operating environment and good sound insulation effect;
② Control room is equipped with split-type air conditioner, aluminium alloy sliding windows, wood floor and so on;
③ All operations are integrated in one room, auto and semi-auto control makes it easy to operate.
