Product Description
YLB Series mobile asphalt mixing plant is designed on the basise of LB series asphalt mixing plant, not only retains the advantages of LB series asphalt mixing plant, such as accurate screening & weighting, batch mix, and high quality asphalt, but also increased moving fast, easy installation features. YLB Series mobile asphalt mixing plant is modular in design, compact structure, all the major components, such as cold aggregate supply system, drying drum, mixing tower, dust collector system, bitumen supply system, powder supply system, etc., can be hauled overall without any disassembly, transitions quickly and easily. YLB Series mobile asphalt mixing plant can greatly save the time and costs of installation.
Technical Data:
| Model | YLB600 | YLB800 | YLB1000 | YLB1500 | YLB2000 | |
| Capacity | 48 T/H | 64 T/H | 80 T/H | 120 T/H | 160 T/H | |
| Mixer Capacity | 600 Kg/Batch | 800 Kg/Batch | 1000 Kg/Batch | 1500 Kg/Batch | 2000 Kg/Batch | |
| Fuel Consumption | Diesel Consumption: 5.5-7 Kg/Ton | |||||
| Weighing Precision | Hot Aggregate: ±0.5%; Bitumen: ±0.3%; Filler: ±0.2% | |||||
| Hot Asphalt Temperature |
130℃-165℃ (Adjustable) | |||||
| Air Emissions | ≤ 20 Mg/Nm³ | |||||
| Working Noise | ≤ 70 Db(A) | |||||
| Operation | Full Auto/Manual Operation | |||||
| Installation Power | 167 KW | 208 KW | 266 KW | 333 KW | 347 KW | |
| Voltage | 220V/380V-50Hz (Adjustable) | |||||
| Plant Covering Area |
Length | 35 M | 40 M | 40 M | 45 M | 50 M |
| Width | 28 M | 30 M | 30 M | 35 M | 40 M | |
| Height | 15 M | 15 M | 15 M | 17 M | 17 M | |
| Total Weight | 79 T | 115 T | 128 T | 153 T | 205 T | |
| Documents | Lay-Out/ Electric Circuit Diagram; Chinese-English Operation Manual; Qualification Certificate. | |||||
Features
Containerized and Modular Design: Allows for easy transportation and assembly.

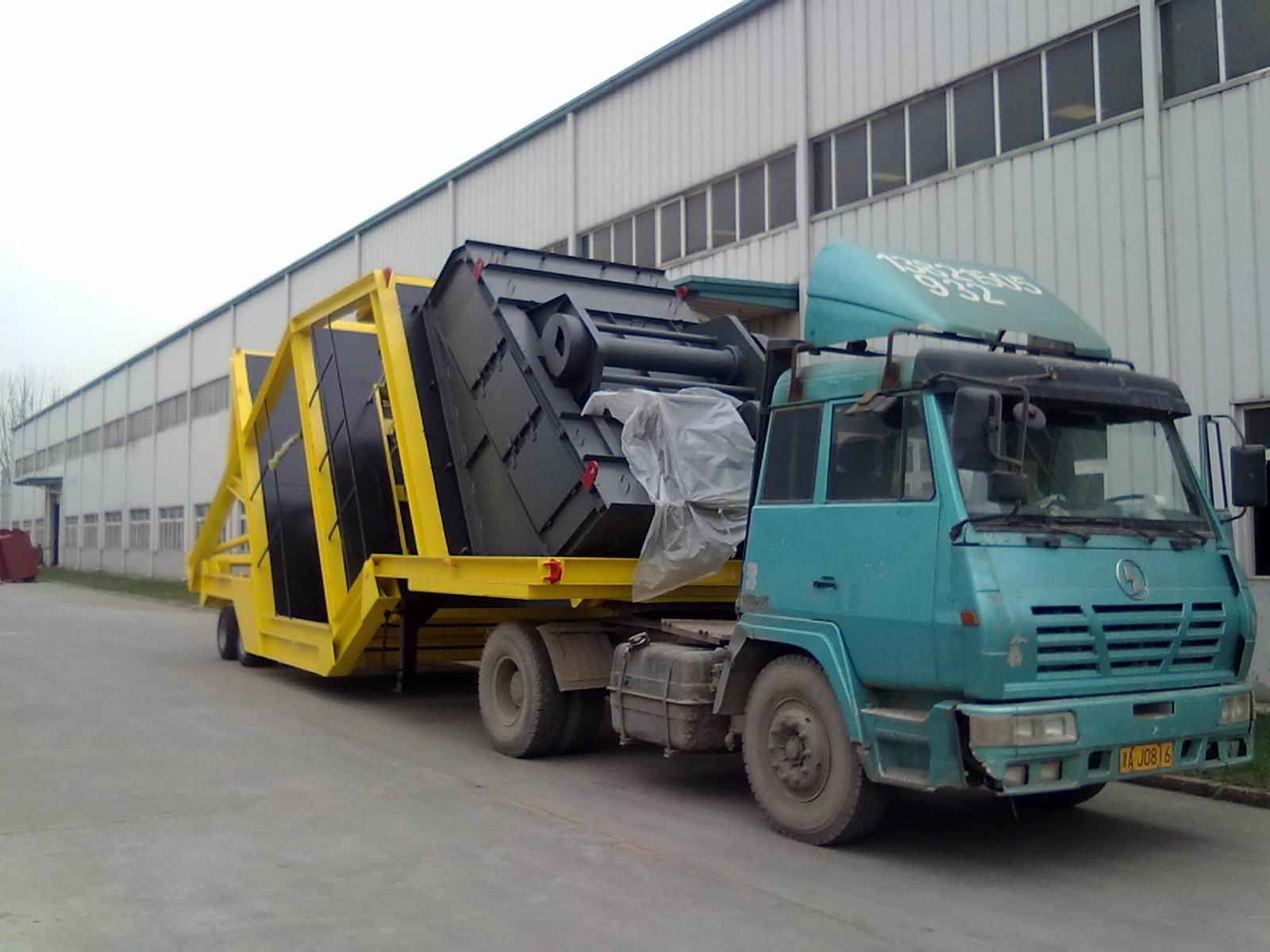

Mobile Chassis: Enables quick relocation and movement between job sites.
Fast Installation: Can be installed quickly without the need for extensive foundation work.
Batch Mixing: Produces asphalt mixtures in batches, with a typical cycle time of 40-45 seconds.
