Product description
Diesel concrete pump is a main kind of construction machinery in the course of commercial concrete transportation and deposition. It is motivated by diesel engine. By using it, concrete can be piped along the pipe to the pouring site. It consists of pumping body and conveying pipes. The diesel engine concrete pump usually appears in the construction of high buildings, bridges, high speed, tunnels and water conservancy projects, etc. Especially in some work only pumping function is not enough, our diesel concrete mixer pump is a great choice.
Diesel-powered stationary concrete pump adopts diesel engine to pump concrete, which is very fuel efficient. We mainly have DHBT Series diesel concrete trailer pump , these pump machines are much more suitable for areas lacking electricity or no electricity. Our company based on the mature hydraulic concrete delivery pump, developed the small and medium concrete pump that both pumping fine-stone concrete and mortar and pumping large aggregates. Main production throughput 20-40m ³/h, concrete conveying pressure is 3-13Mpa all kinds of motor concrete pumps. Suitable for industry and civil construction, transportation, railways, as well as concrete projects of water conservancy, electric power and other industries the economical, efficient delivery of concrete or mortar.
Hot Sale in stock: DHBT40 Diesel concrete pump - HBT60 Electric concrete pump - HBT15 Concrete mixing pump - DHBT15 Concrete mixing pump - 42m Concrete Boom Pump Truck - 17m Concrete Placing Boom - HBT80 Electric concrete pump
Technical Data
| Item | Unit | DHBT30 | DHBT40 | DHBT50 | DHBT60 | DHBT80 | DHBT90 |
| Theoretical Capacity | M³/H | 30 | 40 | 50 | 60 | 80 | 90 |
| Delivery Pressure | Mpa | 10 | 10 | 10 | 13 | 16 | 22 |
| Max. Pump Times | Times/Min | 24 | 20 | 22 | 22 | 23 | 23 |
| Delivery Height | M | 120 | 120 | 120 | 180 | 180 | 350 |
| Delivery Distance | M | 500 | 500 | 500 | 600 | 1000 | 1500 |
| Distribution Valve Type | S Tube Valve | S Tube Valve | S Tube Valve | S Tube Valve | S Tube Valve | S Tube Valve | |
| Delivery Cylinder Type | Mm | Φ140×1200 | Φ180×1300 | Φ180×1300 | Φ200×1650 | Φ200×1650 | Φ200×1800 |
| Main Oil Pump | Mm | Φ80/55×1200 | Φ100/70×1300 | Φ110/70×1300 | Φ125/80×1650 | Φ125/Φ80×1650 | Φ125/Φ80×1650 |
| Oil Tank Capacity | L | 260 | 370 | 370 | 560 | 560 | 560 |
| Hopper Capacity | L | 400 | 400 | 400 | 800 | 800 | 800 |
| Filling Height | Mm | 1100 | 1100 | 1100 | 1400 | 1400 | 1400 |
| Outlet Diameter | Mm | Φ125 | Φ150 | Φ150 | Φ180 | Φ180 | Φ200 |
| Delivery Pipe Inner Diameter | Mm | Φ125/Φ100 | Φ125 | Φ125 | Φ125 | Φ125 | Φ125 |
| Engine Power | Kw | 56 | 82 | 82 | 129 | 129/145 | 199 |
| Rated Spped | R/Min | 2200 | 2200 | 2300 | 2300 | 2300 | 2300 |
| Idling Speed | R/Min | 800 | 800 | 800 | 800 | 800 | 800 |
| Voltage | V | 24V | 24V | 24V | 24V | 24V | 24V |
| Fuel Tank | L | 150 | 150 | 150 | 150 | 150 | 150 |
| Hydraulic Oil-Way Type | Open | Open | Open | Open | Open | Open | |
| Max. Oil Pressure | MPa | 26 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max. Oil Pressure For Mixing System | MPa | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 |
| Max. Mixing Speed | R/Min | 24 | 24 | 24 | 24 | 24 | 24 |
| Slump | Mm | 80～200 | 80～200 | 80～200 | 80～200 | 80～200 | 80～200 |
| Maximum Aggregate Size | Mm | ≤30（≤20） | Aggregate 40 | Pebble 50, Aggregate 40 | Pebble 50, Aggregate 40 | Pebble 50, Aggregate 40 | Pebble 50, Aggregate 40 |
| Overall Dimension | Mm | 4970×1680 ×2580 |
5270×1860 ×2580 |
6600×1930 ×2190 |
6600×1930 ×2190 |
6600×1930 ×2190 |
6800×2100 ×2350 |
| Wight | Kg | 3500 | 4500 | 4500 | 6500 | 6800 | 7000 |
| Towing Speed | Km/H | ≤8 | ≤8 | ≤8 | ≤8 | ≤8 | ≤8 |

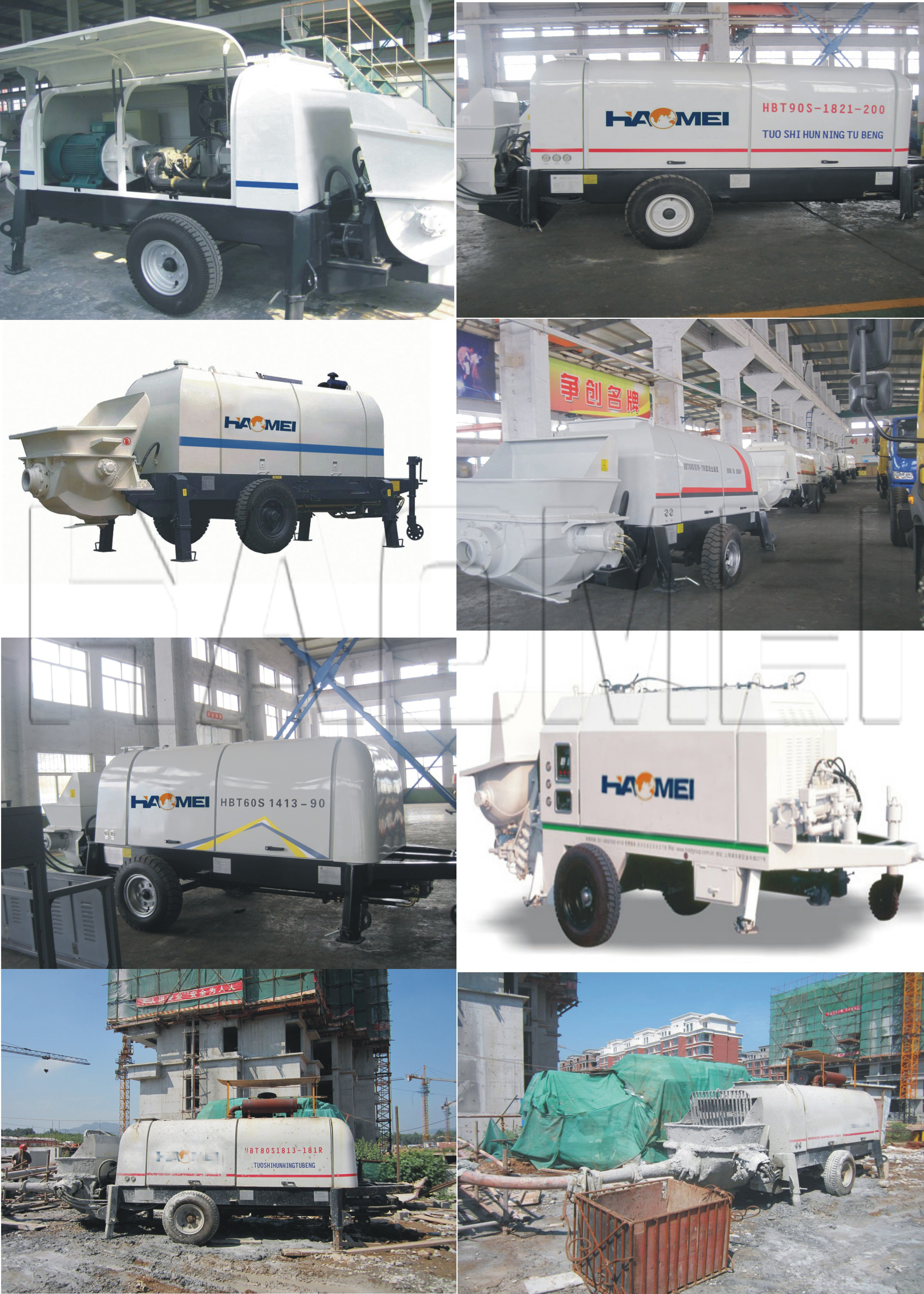

Detailed Photos
Performance
1. Radiator: adopts the air-cooled plate-fin radiator to ensure that the system could operate in a maximum temperature allowed.
2. The main oil pump: adopts the German Hawe / Rexroth / Japanese Kawasaki series.
3. Lubrication system: adopts the automatic multi-point lubrication technology featuring one to one lubrication with better efficiency and the extending service life of wearing parts.
4. Power system: the power of motor series uses the well-known domestic and foreign brands: Yantai motor, Qingdao motor, Siemens Beide motor.
5. Diesel Series: power system employs the Lovol or Deutz diesel engine;
6. Electrical parts: the main electrical products adopts Schneider , LG products to the reliability of the electronic control system.
7. Hydraulic Hose Fittings: adopts the US Eaton products to ensure the safety of the hydraulic system, no leakage.
8. Large cylinder seals: Large cylinder seals adopts the US Parker products.
9. S valve: employing the manganese steel overall casting, the wearing surface adopts wear-resistant materials featuring the dual advantages of pressure and abrasion resistant.
10. Glasses plate cutting ring: glasses plates and cutting ring inlaid adopts the carbide hard to ensure a durable design.
11. Pistons: adopts the imported materials and precision machining, with excellent qualities: hydrolysis resistance, wear resistance and high temperature resistance.

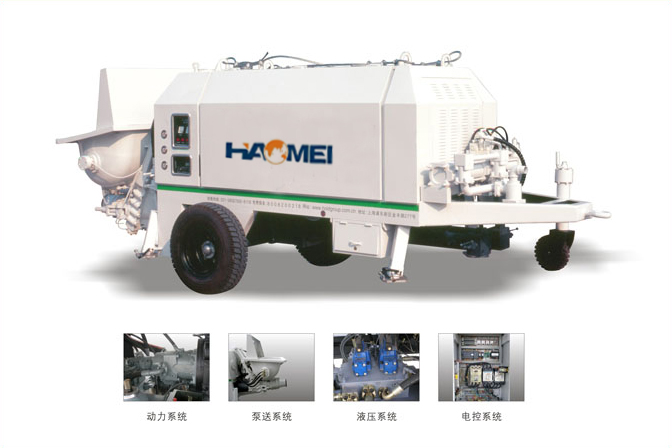

Main Systems and Working Principle
Concrete pump with diesel engine includes mechanical system, cooling system, lubrication system and so on.

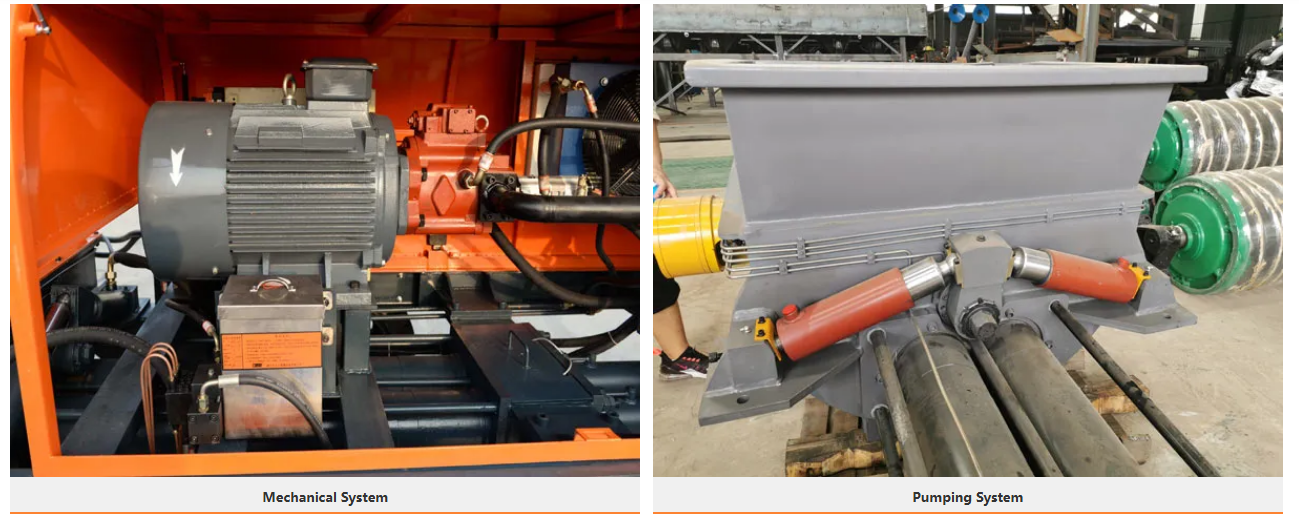

1.The mechanical system consists of pumping system, main power system, hydraulic oil tank, chassis frame body, the axle and guide wheels.
2.Our cooling system adopts wind cooling system, including water tank, hydraulic motor, fan and the hose. Its function is to adjust hydraulic fluid temperature.
3. Lubrication system is also an unique part in diesel concrete pump, whose main function is to lubricate some parts and prevent concrete or mortar getting into those moving parts during the whole mechanical movement.
4.Pumping system, which belongs to mechanical system, is the core system. It consists of five key parts: the hopper, the S valve, concrete conveying cylinder, water tank and main oil cylinder. The hopper, welded by steel plates, is used for storing concrete to make sure the normal process of feeding. Valve connects the hopper and water tank, in which there are two concrete pistons. Water tank is the place to store water, and it is an important connector for main oil cylinder and concrete conveying cylinder. The last part is main oil cylinder. It is plated with hard chromium on the surface in order to avoid rusting.
When the pumping system starts working, with the influence of main oil cylinder, concrete pistons begin to move. Meanwhile, the S valve start to swing in accord with the movement of concrete pistons. By connecting conveying pipe with conveying cylinder in turn, the process of pumping is completed. And then it starts next circulation.
