Product description

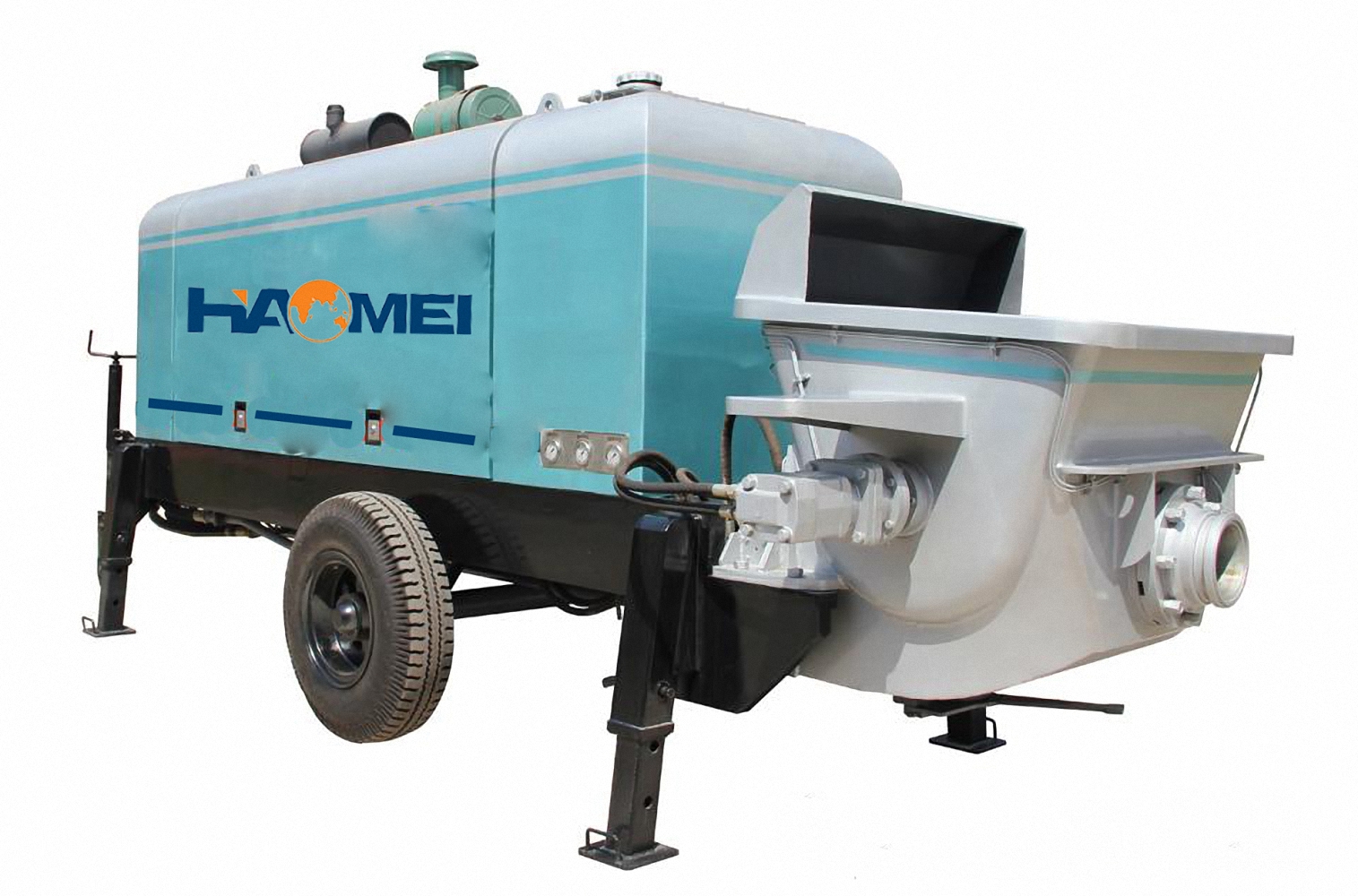

Mini concrete pump is a compact and highly efficient solution. It can transfer the liquid concrete from a mixer to the placement site. Different from the large type concrete pump, you can move it conveniently. And it takes less space than the larger type. The compact design makes it applicable for tight space applications
The secondary structure pump is mainly composed of concrete pumping system, hydraulic electromagnetic reversing mechanism, PLC integrated electrical automatic control system, dispersion system, lubrication system, hopper, pump frame and other parts. Mainly by PLC controller, inductive proximity switch to control solenoid valve, oil cylinder, pendulum cylinder and other hydraulic components, and finally make S tube pendulum valve and piston, cylinder and other pumping system of the regular opening and closing, continuous suction, slurry discharge operations.
Technical Data
| Model | HM120-1 | HM120-2 |
| Number of cylinder | 2 | 2 |
| Material cylinder diameter | 120mm | 120mm |
| Air cooler model | AH1012T-CA (AC380) | AH1012T-CA (AC380) |
| Type of Gear Pump | GJ2050/L | GJ2050/L |
| Rated pressure of gear pump | 20 MPa | 20 MPa |
| Maximum outlet pressure | 3 MPa | 3 MPa |
| Theoretical discharge | 7-9 m³/h | 7-9 m³/h |
| Pump lift | 20m | 30m |
| Distance of farthest conveying | 40m | 60m |
| Maximum material diameter | 20mm | 20mm |
| Tank volume | 78 Liter | 78 Liter |
| Dimension size | 1895×726×1300 mm | 1895×726×1300 mm |
| Weight | 700kg | 730kg |
Working process
First of all, the concrete pump must be parked on flat, solid ground, absolutely not on soft ground, in order to avoid the inclination in the process of work.
Start the main motor for a short time operation, and observe whether the pressure gauge is normal. According to the length of the pipeline, before starting the construction work, we must first pump the water into the pipeline through the pendulum valve to lubricate the pipe wall. Then mortar, and finally concrete, work begins, and often run the test pump empty, with clear water pumping to confirm the smooth pipeline.
Where can you use the Mobile mini concrete pump?
The primary purpose of a mini concrete pump machines is improving the working efficiency. It streamlines the concrete pouring process. With this machine, both the efficiency and quality on the job site are highly improved. You can use it for various projects, including the construction of residential buildings for foundations, slabs, and walls.
In commercial projects, it is applicable for flooring and structural elements. And in agricultural settings, you can use it for erecting sheds and laying pathways. Besides, because of the precision of pumping, it is ideal for specialized projects like swimming pool or some decorative concrete work.
The mini type concrete pumps can deliver a consistent and controlled flow of material. They minimize waste, ensuring structural integrity. What’s more, for some hard-to-reach areas that are inaccessible for traditional ready-mix trucks, the mini concrete pumping machines can place concrete well.
What are the types of mini concrete pumps
As a professional concrete machinery supplier with experience, Haomei has various concrete pumps for you to choose. For your mini concrete pump requirements, there are concrete mixer pump machines and trailer pumps for your reference. They are applicable for your different construction projects. The concrete mixer pumping machines combine mixing and pumping functions in one. And the trailer type concrete pump has a larger capacity than the mixer pumping machine. But you had better prepare a concrete mixer or ready-mix concrete for pumping when using trailer concrete pumps.
