Product description

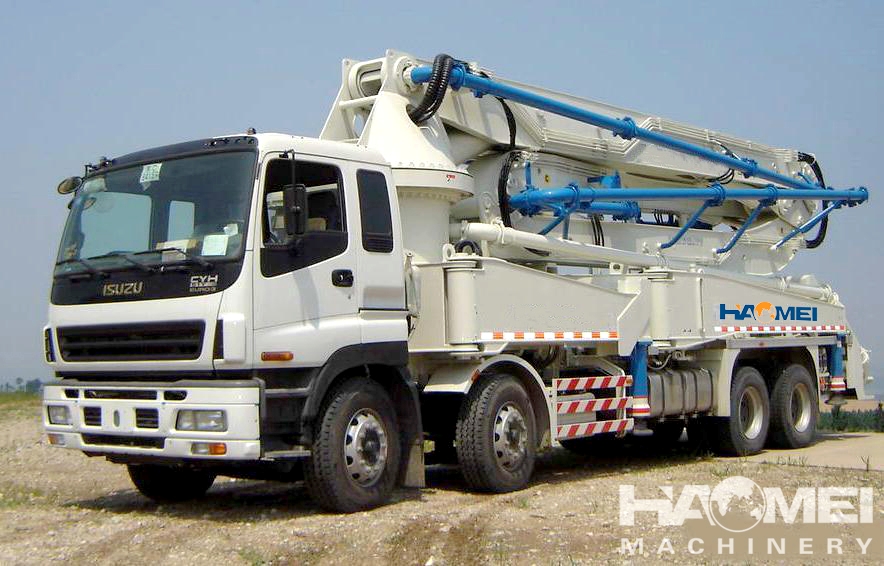

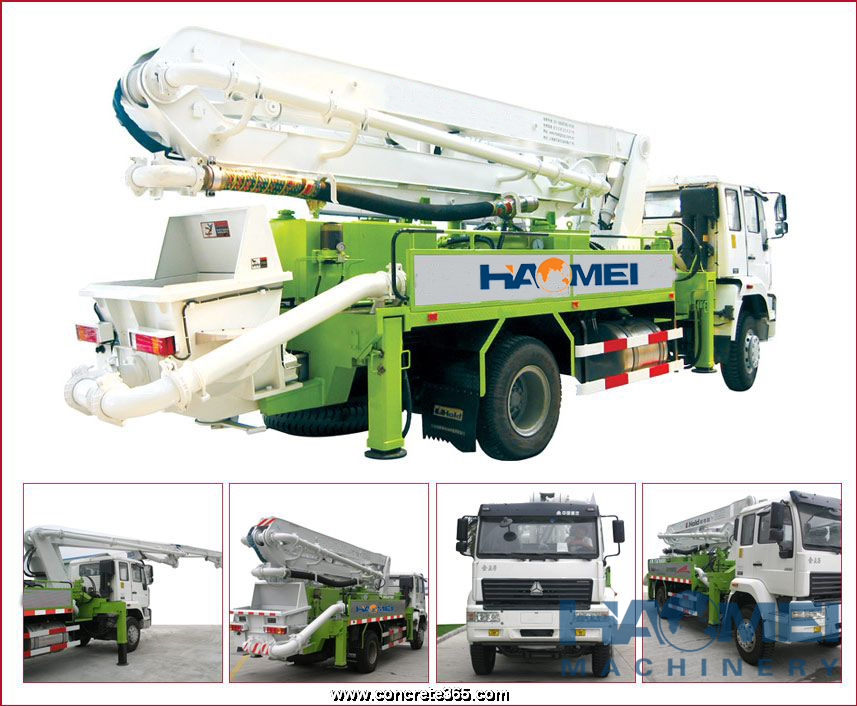

It is a pump mounted on a truck and is equipped with an arm capable of increased vertical reach as well as horizontal reach at the job site. Unlike trailer pumps, a truck-mounted boom pump is mostly used for large-scale concrete pumping tasks. It enables the workers at the site to pour large amounts of concrete quickly, whether for cast in place or block walls. It also helps to pour the concrete at a height, thanks to increased vertical reach.A boom pump is suitable for high-volume concrete pumping, with an output of at least 100 cubic yards an hour.
The rate at which concrete can be delivered, together with its high-volume capacity makes a boom pump ideal for projects on a larger scale.
Technical Data
Concrete boom truck 37m-39m
| name | unit | HDT5291THB-37/4 | HDT5291THB-39/4 |
| output in theory | m3/h | 125 | 125 |
| index of the pump carry capacity | Mpa.m3/h | 586 | 586 |
| theoretic pumping pressure | Mpa | 8.5 | 8.5 |
| bucket volume | L | 700 | 700 |
| height of top surface of bucket | mm | 1370 | 1370 |
| model of distribution valve | S Valve | S Valve | |
| max. operation radius | m | 32.6 | 34.7 |
| max. operation height | m | 36.6 | 38.7 |
| max. operation depth | m | 25.5 | 27 |
| open height of boom | mm | 8450 | 8830 |
| distance between front landing legs | mm | 7058 | 6800 |
| distance between rear landing legs | mm | 6848 | 7000 |
| distance between front & rear landing legs | mm | 6790 | 7432 |
| diameter of delivery pipe | mm | 125 | 125 |
| length of hose pipe | m | 4 | 4 |
| rotary range of boom | 365° | 365° | |
| quantity of boom | 4 | 4 | |
| rotary angle of each boom | ° | 92/180/180/270 | 91/180/180/180/270 |
| wire line control distance | m | 33 | 33 |
| romote control distance | m | 200 | 200 |
| max. speed | km/h | 90 | 90 |
| min. turn radius | mm | 8800 | 8800 |
| brake distance | m | 7 | 7 |
| approach angle | ° | 16 | 16 |
| departure angle | ° | 11 | 11 |
| chassis model | HOWO ZZ5307N4647C | HOWO ZZ5307N4647C | |
| wheel base between the first & the second axle | mm | 4600 | 4600 |
| wheel base between the second & the third axle | mm | 1350 | 1350 |
| front tread | mm | 2022 | 2022 |
| rear tread | mm | 1830 | 1830 |
| max. engine output power | kw | 247(2200r/min) | 247(2200r/min) |
| max. engine output torque | n.m | 1350(1100-1600r/min) | 1350(1100-1600r/min) |
| max, gradient ability | % | 35 | 35 |
| fuel consumption | L/100km | 34 | 34 |
| （××）out dimension(L×W×H) | mm | 12000×2490×3850 | 12500×2490×3950 |
| total weight | kg | 29000 | 29500 |
Concrete boom truck 42m-45m:
| name | unit | HDT5350THB-42/4 | HDT5401THB-45/5 |
| output in theory | m3/h | 125 | 125 |
| index of the pump carry capacity | Mpa.m3/h | 586 | 586 |
| Theoretic pumping pressure | Mpa | 8.5 | 8.5 |
| bucket volume | L | 700 | 700 |
| height of top surface of bucket | mm | 1400 | 1400 |
| model of distribution valve | S Valve | S Valve | |
| max. operation radius | m | 38 | 40.7 |
| max. operation height | m | 41.8 | 44.7 |
| max. operation depth | m | 29 | 31.3 |
| open height of boom | mm | 8600 | 8495 |
| distance between front landing legs | mm | 8820 | 9550 |
| distance between rear landing legs | mm | 8500 | 9550 |
| distance between front & rear landing legs | mm | 8490 | 9190 |
| diameter of delivery pipe | mm | 125 | 125 |
| length of hose pipe | m | 3 | 3 |
| rotary range of boom | 365° | 365° | |
| quantity of boom | 4 | 5 | |
| rotary angle of each boom | ° | 92/180/180/240 | 91/180/180/180/270 |
| wire line control distance | m | 33 | 33 |
| romote control distance | m | 200 | 200 |
| max. speed | km/h | 85 | 80 |
| min. turn radius | mm | 12100 | 12100 |
| brake distance | m | 10 | 10 |
| approach angle | ° | 16 | 16 |
| departure angle | ° | 11 | 11 |
| chassis model | HOWO ZZ5437S4667C | HOWO ZZ5437S4667C | |
| wheel base between the first & the second axle | mm | 1800 | 1800 |
| wheel base between the second & the third axle | mm | 4600 | 4600 |
| wheel base between the third & the fourth axle | mm | 1350 | 1350 |
| front tread | mm | 2022 | 2022 |
| rear tread | mm | 1830 | 1830 |
| max. engine output power | kw | 275(2200r/min) | 275(2200r/min) |
| max. engine output torque | n.m | 1500 /(1100~1600 r/min) | 1500 /(1100~1600 r/min) |
| max, gradient ability | % | 37 | 35 |
| fuel consumption | L/100km | 38 | 40 |
| （××）out dimension(L×W×H) | mm | 13650×2490×3960 | 13300×2500×4000 |
| total weight | kg | 35000 | 40000 |
Concrete boom truck 48m-52m:
| Item | Unit | HDT5401THB-48/5 | HDT5420THB-52/5 |
| output in theory | m3/h | 125 | 125 |
| index of the pump carry capacity | Mpa.m3/h | 586 | 586 |
| theoretic pumping pressure | Mpa | 8.5 | 8.5 |
| bucket volume | L | 700 | 700 |
| height of top surface of bucket | mm | 1400 | 1400 |
| model of distribution valve | S Valve | S Valve | |
| max. operation radius | m | 43.7 | 47.8 |
| max. operation height | m | 47.7 | 51.8 |
| max. operation depth | m | 34.3 | 39.8 |
| open height of boom | mm | 9065 | 9400 |
| distance between front landing legs | mm | 9780 | 10295 |
| distance between rear landing legs | mm | 9860 | 10650 |
| distance between front & rear landing legs | mm | 9470 | 10310 |
| diameter of delivery pipe | mm | 125 | 125 |
| length of hose pipe | m | 3 | 3 |
| rotary range of boom | 365° | 365° | |
| quantity of boom | 5 | 5 | |
| rotary angle of each boom | ° | 91/180/180/180/270 | 90/180/180/180/270 |
| wire line control distance | m | 33 | 33 |
| romote control distance | m | 200 | 200 |
| max. speed | km/h | 85 | 80 |
| min. turn radius | mm | 12000 | 12500 |
| brake distance | m | 10 | 10 |
| approach angle | ° | 16 | 16 |
| departure angle | ° | 11 | 11 |
| chassis model | HOWO ZZ5437S4667C(HOWO Engine) | HOWO ZZ5437S5067C1(HOWO Engine) | |
| wheel base between the first & the second axle | mm | 1800 | 1800 |
| wheel base between the second & the third axle | mm | 4600 | 5000 |
| wheel base between the third & the fourth axle | mm | 1350 | 1350 |
| front tread | mm | 2022 | 2022 |
| rear tread | mm | 1830 | 1830 |
| max. engine output power | kw | 275(2200r/min) | 275(2200r/min) |
| max. engine output torque | n.m | 1500 /(1100~1600 r/min) | 1500 /(1100~1600 r/min) |
| max, gradient ability | % | 37 | 37 |
| fuel consumption | L/100km | 40 | 40 |
| （××）out dimension(L×W×H) | mm | 13300×2500×4000 | 13990×2500×4000 |
| total weight | kg | 40000 | 42000 |
Highlights of truck mounted concrete boom pumps
1. Boom and outrigger hydraulic system:
The boom adopts a load-sensitive proportional control system, which makes the boom run freely and has excellent operation performance; it can not only realize infinitely variable remote control, but also realize emergency manual operation in emergency situations; The oil circuit of the outrigger and the boom is directly switched to avoid misoperation and ensure the operation safety of the boom pump;
2. Pumping hydraulic system:
full hydraulic control hydraulic system, oil pressure transmission signal, making the operation simpler and more reliable, improving the reversing speed of the swing cylinder, reducing the reversing impact, and at the same time, the instantaneous action of the large oil cylinder reversing is accelerated, which can make the concrete cylinder full, so that the concrete is pumped continuously and uniformly discharge;
3. Chassis and power system:
FAW, SINOTRUK, FOTON and other heavy-duty chassis are equipped, with strong bearing capacity, good dynamic performance and low fuel consumption; it can achieve the characteristics of fuel saving, energy saving, and convenient maintenance;
4. Boom:
Based on accurate data support through finite element analysis, dynamic analysis calculations and experiments. The material is made of high-strength low-alloy steel plate, and all materials and welds have passed 100% non-destructive testing to ensure reasonable boom structure and high reliability;
5. Electric control system:
Simple and reliable electric control system, the main electrical appliances are Schneider, equipped with two operating devices: panel and wireless remote control, using well-known brand wireless remote control, in line with ergonomic design principles, beautiful appearance, light and flexible operation.
Comparison between 3 types concrete pumping machines
There are three different types of concrete pumps as options for different projects. You can make a right decision according to the below table.
| ems | Trailer concrete pump | Truck-mounted concrete line pump | Pumpcrete for sale (Truck-mounted concrete boom pump) |
| Horizontal pumping | Ideal | Ideal | -- |
| Vertical pumping | Can do, but it will take time to prepare the pipe | Can do, but it will take time to prepare the pipe | Ideal equipment, with boom directly, no need to prepare pipe |
| Capacity | 20-90m3/h | 60-100m3/h | More than 90m3/h |
| Full portability | It is mounted onto a trailer, allowing for easy transportation. But you need one more truck to take the pumping pipes and tow the concrete trailer pump | It is mounted onto a truck, allowing for easy transportation. But one more truck is required for more pipes. Because not too long pipes can be brought by itself. | It is directly attached to a truck allowing for excellent mobility. Wherever the truck goes, the boom will go with it.Very convenient. |
| Price | The lowest in these three pump machines | The medium in these three pump machines | The highest in these three pump machines |
| Emission standard for consideration | No need to consider, it is non-road device. | With truck, need to consider the emission standard locally. | With truck, need to consider the emission standard locally. |
| Shipping | Can be put into the container, sea freight is lower | Delivered by RORO, flat rack or bulk vessel | Delivered by RORO, flat rack or bulk vessel |
