Product Description

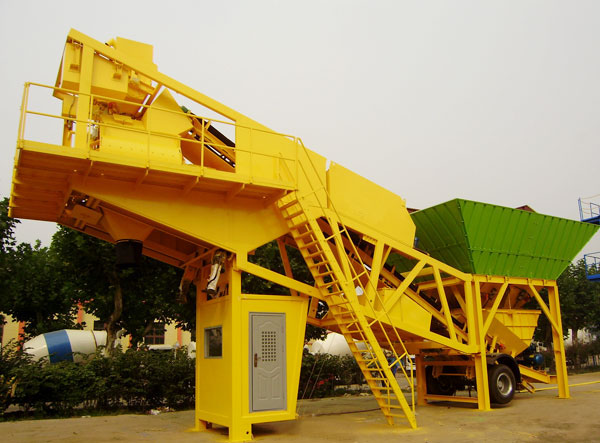

As a small type mixing equipment, the Small Portable Concrete Batch Plant has light weight, convenient movement, the installation foundation work is less, and the cost of installation and assemble is low. The mixing capacity of mobile concrete batching plant is not very high for highlight the weight and transfer advantages, the models are YHZS25, YHZS35, YHZS50, YHZS60 and YHZS75 mobile concrete plants, among them, the mini type like YHZS25, 35 and 50 are favored by the market demands.
In order to ensure the reduce the whole volume and weight, the storage hopper is always small, but it is easy to result in charging break off, thus, the loader with high flexibility is needed to match with the mobile concrete batching plant. In order to easy move, the height of the mobile concrete batching plant is low, for the purpose of ensure high discharging height, same measures should be also taken. In the transfer process, the main part of Small Portable Concrete Batch Plant is trailed as one unit, which is very suitable for the construction project with long site or short period. While the mixing capacity of the mobile concrete batching plant is not ad high as the stationary concrete batching plant, but it does not means that the mixing efficiency is low, the weighing system and mixing system of the portable type concrete batching plant are the same as the stationary type.
The cost of the Small Portable Concrete Batch Plantis a little higher than the stationary type with same mixing capacity. But due to its high flexibility, in recent years, more and more customers choose mobile concrete batching plant for their construction projects.
Technical Data
| Type | YHZS25 | YHZS35 | YHZS60 | YHZS75 | |
|---|---|---|---|---|---|
| Theoretical production capacity(m³/h) | 25 | 35 | 60 | 75 | |
| Concrete mixer | Type | JS500 | JS750 | JS1000 | JS1500 |
| Power(KW) | 24.75 | 38.6 | 51 | 65.5 | |
| Discharging capacity(L) | 500 | 750 | 1000 | 1500 | |
| Aggregate size(Pebble/Macadam)(mm) | 80/60 | 80/60 | 80/60 | 80/60 | |
| Aggregate Bin volume(m³) | 3.2 | 7.3 | 8.3 | 12 | |
| Weighing Accuracy | Aggregate (KG) | ±2% | ±2% | ±2% | ±2% |
| Cement(KG) | ±1% | ±1% | ±1% | ±1% | |
| Fly ash(KG) | ±1% | ±1% | |||
| Water (KG) | ±1% | ±1% | ±1% | ±1% | |
| Additive(KG) | ±1% | ±1% | ±1% | ±1% | |
| Total power(KW) | 50Kw | 64Kw | 85Kw | 110KW | |
| Discharging height(M) | 2.8 m | 2.8 m | 2.8 m | 3.8m | |
| Gross weight(T) | 12 | 16 | 20 | 50 | |
Advantages
Whether it is a small mobile concrete plant equipped with wheels or a truck-mounted portable batching plant, small portable batching plant is based on various movable structure designs. The system is integrated into one, with a compact overall structure, flexible mobility, and efficient work performance to meet customer needs.
Small size, precise configuration, economical use, high cost performance
The structure is compact, and the concrete production process is concentrated on the trailer unit
Human-machine interface, reliable performance, stable operation in various environments
Twin-shaft horizontal mixer, strong continuous operation ability, strong mixing performance, fast and uniform stirring.
The complete set of equipment can be quickly transported to the construction site and assembled on site through the full hanging form, and can be constructed without debugging.
High degree of automation, strong maneuverability, simple operation and good stability.
The structure is solid, the space layout is compact and reasonable, which ensures flexibility and production capacity. Compact modular design for easy maintenance
