Product Description

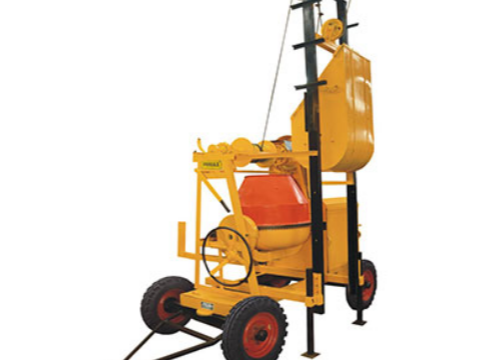

Concrete mixers with lifts, often called concrete lift mixers, concrete mixers with hoist, or self-loading concrete mixers, are integrated machines designed to mix concrete and transport it vertically to elevated areas on a construction site. They combine a mixing drum with an automated or hydraulic lifting mechanism, such as a skip loader or elevator bucket.
We are one of the leading manufacturers of Concrete Mixers with Lift (Hoist), offering an extensive range of machines that combine advanced technology and durable construction. Our Concrete Mixers with Lift (Hoist) are crafted using high-quality components and rigorously tested to ensure superior performance and reliability. As a trusted name in the industry, we are committed to delivering efficient and cost-effective solutions for construction projects.
Technical Data
|
Item model |
JZC350D |
|
Charging Capacity (L) |
560 |
|
Discharging Capacity (L) |
350 |
|
Production Capacity (m³/h) |
10-14 |
|
Max Aggregate Diameter(mm) |
60 |
|
Drum Rotation Speed (r/min) |
14 |
|
Overall Size(mm ) |
3300*2300*3100 |
|
Drum Thickness(mm ) |
6 |
|
Mixing Power |
Diesel Engine 16 HP |
|
Cement per batch(bag) |
2 |
|
Max Speed (km/h) |
20 |
|
Dimension (mm) |
3300*2300*3100 |
|
Total Weight (kg) |
2300 |
|
Lift Height（m） |
7 m |
|
Lifting Bucket Capacity(L) |
200 |
|
Lifting Type |
Hydraulic Lifting |
Types of Concrete Mixers with Lift
Rotating Drum Lift Mixers: These are the most common, featuring a revolving drum that mixes materials and a separate lifting mechanism to raise the mixed concrete to the required height, often 45 feet or more.
Pan Lift Mixers: These use a stationary pan with rotating paddles or blades for mixing. The entire pan assembly can then be lifted vertically to discharge the concrete.
Self-Loading Concrete Mixers: These are mobile, truck-mounted units with a built-in hydraulic bucket that automatically loads aggregates, cement, and water into the drum. They can mix, transport, and discharge concrete via a rotating chute, often capable of lifting and lowering the drum for precise placement.
Tipping Bucket Lift Mixers: These are more compact units where the mixing bucket rotates and, after mixing, is tipped by a lifting arm to discharge the material at the desired location.
Key Features and Benefits
Efficiency: The integrated design allows a single machine to handle both mixing and vertical transport, which significantly shortens construction time.
Reduced Labor Costs: These machines minimize the need for manual labor to transport concrete using wheelbarrows or other equipment.
Versatility: They are suitable for a wide range of projects, including residential construction, multi-story buildings, road work, and remote locations without access to ready-mix concrete plants.
Portability: Many models are wheel-mounted (portable) and can be easily towed and moved between job sites.
Power Source Options: They are available in both diesel-powered (offering high power and mobility for remote sites) and electric (quieter and energy-efficient for urban or indoor projects) variants.
Safety: Modern concrete lift mixers are equipped with safety features like overload detection sensors, emergency stop buttons, and safety guards to ensure secure operation
