Product Description

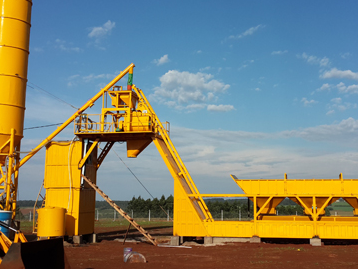

foundation-free concrete batching plant, also known as base-free plants, is an updatedcompact/ modular type batching plant, similar to Haomei mobile type concrete batching plant yet has even faster assembling/debugging mechanism There is no wheels and pulling mechanism, but foundation-free plants has different and fastly-assembled modular, hence it’s even faster to be put into operation-only a piece of solid and flat soil is required.
Technical Data
| Model | FHZS25 | FHZS35 | FHZS50 | FHZS75 |
| Production capacity (m3/h) | 25 | 35 | 50 | 75 |
| Concrete mixer | JS500 | JS750 | JS1000 | JS1500 |
| Aggregate feeding mode | Skip hoist | Skip hoist | Skip hoist | Skip hoist |
| Aggregate batcher | PLD800 | PLD1200 | PLD1600 | PLD2400 |
| Max. aggregate size (mm) | 60/80 | 60/80 | 60/80 | 60/80 |
| Discharging height (m) | 3.8 | 3.8 | 4.1 | 4.1 |
| Aggregate weighing accuracy (%) | ±2 | ±2 | ±2 | ±2 |
| Cement weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Water weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Additive weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Total weight (T) | 10 | 13.5 | 18.5 | 25 |
| Total power (kw) | 65 | 75 | 100 | 110 |
| Control system | Panel | Computer | Computer | Computer |
Advantages of foundation-freeing batch plant
1. Compact design and structure, which is very suitable for shipping in a container.
2. It is easy and convenient to move for work of different sites.
3. Quick installation. Because it doesn’t need to lay a foundation, which saves a lot of installation time
4. High production efficiency. It is equipped with JS series twin shaft concrete mixer,.This kind of concrete mixer can mix aggregate evenly and forcibly, ensure the quality of concrete.
