Product Description

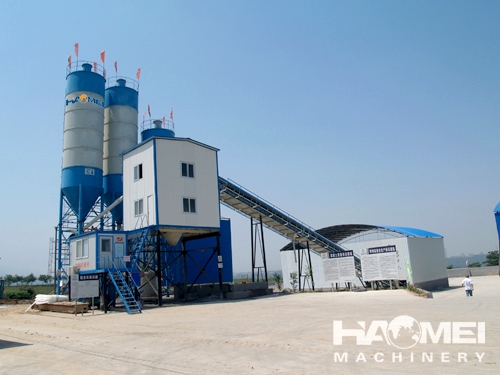

The HZS50 Concrete Batching Plant belongs to the small concrete mixing plant series. It features high-end product precision, excellent performance, high work efficiency, cost efficiency, and eco-friendly applications.
HZS50 concrete batching plant is suitable for small commercial concrete plants, temporary projects, medium-sized projects, precast components factories, and many more.
HZS50 Concrete Batching Plant is popularly known as HZS50 Concrete Mixing Plant, HZS50 Concrete Plant, HZS50 Ready Mixed Concrete (RMC) Batching Plant, and many others more
This type of concrete mixer features a PLD1600 aggregate batching machine, a JS1000 dual shaft compulsory concrete mixer, and high precision weighing sensor. These components are responsible for the efficiency, strength, precision, durability of the HZS50 plant.
Aggregates are loaded by hopper hoists in concrete batching plant HZS50, whose compact structure allows the HZS50 plant to have a small footprint.
Furthermore, a fully automated control system manages the whole manufacturing process. It monitors the weighing and mixing operation, which is the key component of the HZS50 concrete batching plant. In addition, it is critical to ensure dosing accuracy of ±1% to ±2%.
With its advantages of reliable operation, compact structure, and efficient performance, a concrete plant of this type is popularly used in most construction projects, including road construction, bridge construction, and ready-mix concrete manufacturing.
Specifications
|
Model |
HZS50 |
|
|
Specification |
Unit |
Value |
|
Productivity |
m3/h |
50 |
|
Capacity of Mixer |
m3 |
1 |
|
Mixer Power |
kw |
37 |
|
Discharge Height |
m |
3.8(for customers choice) |
|
Aggregate Bin |
Quantity |
3 |
|
Aggregate Bin Capacity |
m3 |
1.6 |
|
Max. Weighing Value of aggregate |
kg |
3000 |
|
Max. Weighing Value of cement |
kg |
600 |
|
Max. Weighing Value of water |
kg |
400 |
|
Max. Weighing Value of additive |
kg |
50 |
|
Aggregate Measuring Accuracy |
% |
2 |
|
Water Measuring Accuracy |
% |
1 |
|
Cement Measuring Accuracy |
% |
1 |
|
Additive Measuring Accuracy |
% |
1 |
|
Cement Silo |
_ |
Optional |
|
Cement Screw Conveyor |
_ |
Optional |
|
Cement Silo Capicity |
_ |
Optional |
|
Control Mode |
_ |
Auto/Semi control |

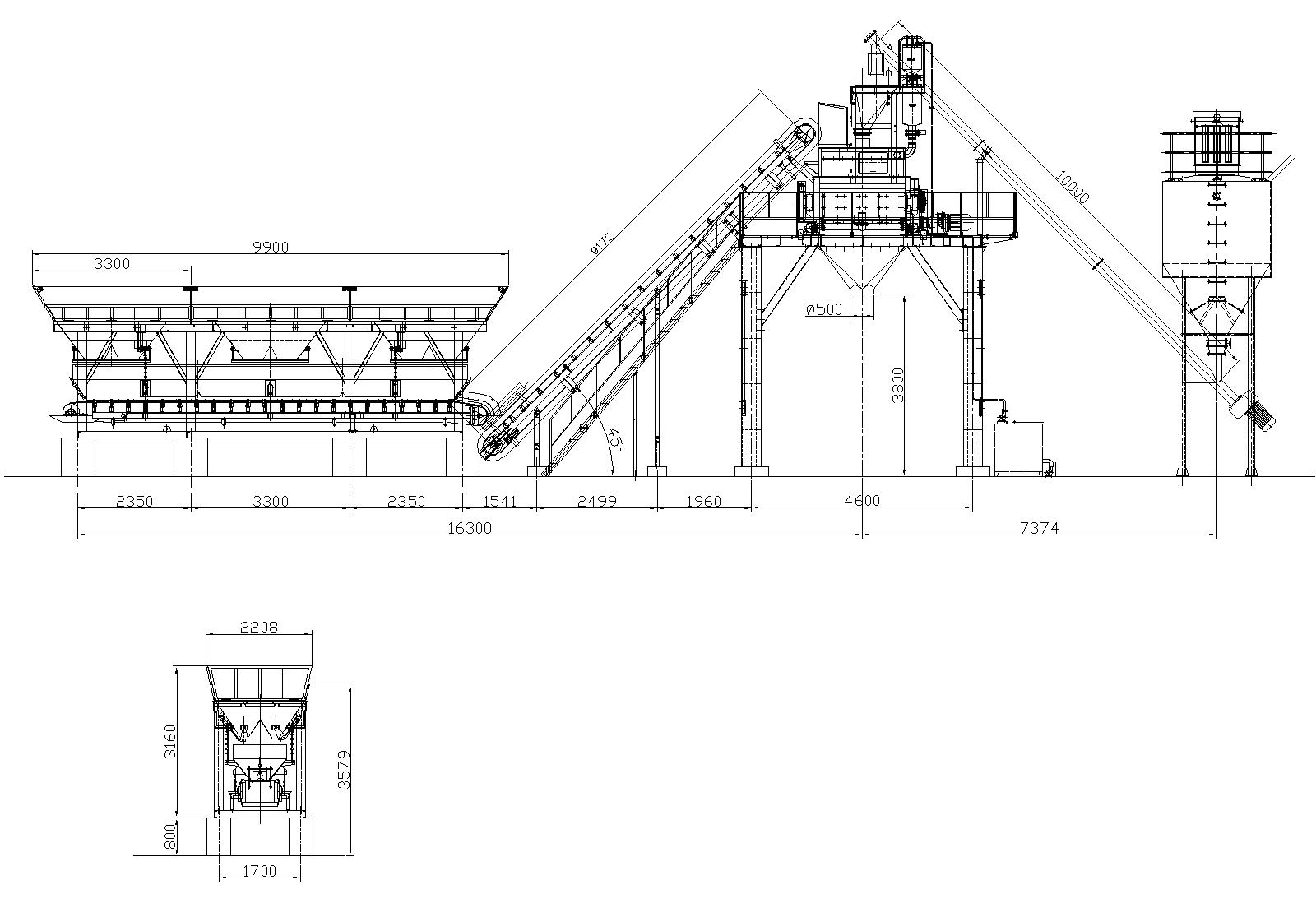

Drawing
Features
1.The concrete batch plant adopts knockdown structure and blocking.
2.The machine adopts JS type of concrete mixer, it has good mixing quality and high efficiency.
3.The batching machine adopts PLD type concrete batch machine, it is measuring nicety and high produce efficiency.
4.The forced water supply system spray equably and has washing function for the mixing system.
5.It adopts the electric weigher to measure all the aggregate cement water liquid additive.
6.The electrical system adopts import parts and has credibility performance
Applications
HZS50 Concrete Batching Plant has the advantages of performances such as work stable, compact structure, small footprint, easy transition, ect. It applies in medium-s
