Product Description
Ready mix batching plant combines all ingredients except for water at the concrete plant. This mixture is then discharged into a ready mix truck, also known as a concrete transport truck. Water is then added to the mix in the truck and mixed during transport to the work site.
How Is a Ready Mix Concrete Plant Made?
The manufacturing process of a ready-mix concrete plant is simple. One must add suitable ingredients to give a ready-mix concrete plant its fixed proportions. To build a small/mini ready-mix concrete plant in good numbers.
All in all, a ready-mix concrete plant is an automatic machine that is designed to prepare different types of concrete mix. The device has extensive separate bins to house various aggregates of mixtures in other chambers. These aggregates and sand are separately weighed with the help of loading cells and then let out into a mixer mixed with water and cement. The water and cement used are also weighed
Specifications

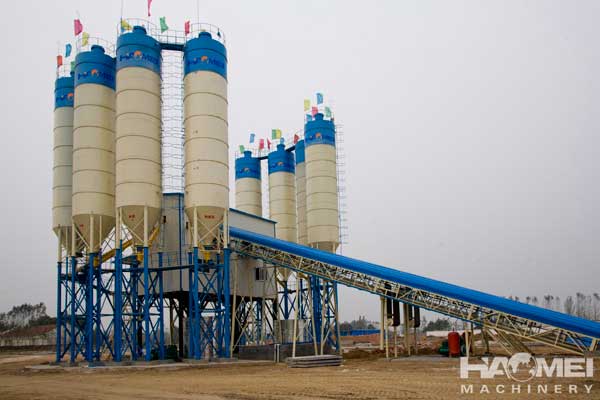

Hzs series stationary concrete plant
| Model | Bucket type | Belt type | ||||||
| Hzs-25 | Hzs-35 | Hzs-50 | Hzs-75 | Hzs-60 | Hzs-90 | Hzs-120 | Hzs-180 | |
| Theoretical Productivity (m³/h) | 25 | 35 | 50 | 75 | 60 | 90 | 120 | 180 |
| Mixer Model (Mixer Output L) | JS500 | JS750 | JS1000 | JS1500 | JS1000 | JS1500 | MAO3000/2000 (SICOMA) | MAO4500/3000 (SICOMA) |
| Mixer Power (kW) | 18.5 | 30 | 2×18.5 | 2×30 | 2×18.5 | 2×30 | 2×37 | 2×55 |
| Mixing Cycle Period (s) | 67 | 72 | 72 | 72 | 60 | 60 | 65 | 65 |
| Rated Input Volume (Model of Batching Machine L) | 800 | 1200 | 1600 | 2400 | 1600 | 2400 | 3000 | 4500 |
| Max.Aggregate Size (mm) | Φ60 | Φ60 | Φ60 | Φ80 | Φ60 | Φ80 | Φ80 | Φ80 |
| Standard Aggregate Bin Capacity (m³) | 3×3 | 3×5 | 3×8 | 3×12 | 4×7 | 4×15 | 4×15 | 4×20 |
| Category of Aggregate | 2/3 | 2/3/4 | 3/4 | 3/4 | 4/5 | 4/5 | 4/5/6 | 4/5/6 |
| Powder Storage Silo (ton) (Optional) | 1×50 | 2×50 | 1×100 | 2×100 | 2×100 | 3×100 | 4×200 | 4×200 |
| Max. Discharging Height (m) | 3.8 | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 | 4.3 | 4.3 |
| Weighing Range & Accuracy of Aggregate (kg) | （300~1000） ±2% | （300~1000） ±2% | （300~1000） ±2% | (300~1500) ±2% | (300~1000) ±2% | (300~1500) ±2% | (300~2000) ±2% | (300~3000) ±2% |
| Weighing Range & Accuracy of Cement (kg) | （100~300） ±1% | （100~300） ±1% | （100~750） ±1% | （100~900） ±1% | （100~750） ±1% | （100~900） ±1% | （100~1200） ±1% | （100~1800） ±1% |
| Weighing Range & Accuracy of Water (kg) | （60~150） ±1% | （60~150） ±1% | （100~300） ±1% | （100~400） ±1% | （100~300） ±1% | （100~400） ±1% | （100~600） ±1% | （100~800） ±1% |
| Weighing Range & Accuracy of Additive (kg) | （5~20） ±1% | （5~20） ±1% | （5~20） ±1% | （5~25） ±1% | （5~20） ±1% | （5~25） ±1% | （5~30） ±1% | （5~50） ±1% |
| Overall Weight (ton) | ≈15 | ≈18 | ≈23 | ≈30 | ≈40 | ≈68 | ≈93 | ≈101 |
| Installation Power (kW) | ≈65 | ≈75 | ≈100 | ≈140 | ≈110 | ≈160 | ≈220 | ≈290 |
| Power Supply |
380V/220V/415/440V, 50/60HZ, 3Phase |
|||||||
Yhzs series mobile batching plant
| Model | Belt Type | ||
| Yhzs-25 | Yhzs-35 | Yhzs-50 | |
| Theoretical Productivity (m³/h) | 25 | 35 | 50 |
| Mixer Model (Mixer Output L) | JS500 | JS750 | JS1000 |
| Mixer Power (kW) | 18.5 | 30 | 2×18.5 |
| Mixing Cycle Period (s) | 67 | 72 | 72 |
| Rated Input Volume (Model of Batching Machine L) | 800 | 1200 | 1600 |
| Max.Aggregate Size (mm) | Φ60 | Φ60 | Φ60 |
| Standard Aggregate Bin Capacity (m³) | 2×3 | 2×5 | 3×5 |
| Category of Aggregate | 2/3/4 | ||
| Powder Storage Silo (ton) (Optional) | 1×50 | 2×50 | 1×100 |
| Max. Discharging Height (m) | 3.8 | 3.8 | 4.1 |
| Weighing Range & Accuracy of Aggregate (kg) | （300~1500）±2% | （300~1500）±2% | （300~3000）±2% |
| Weighing Range & Accuracy of Cement (kg) | （100~300）±1% | （100~300）±1% | （250~900）±1% |
| Weighing Range & Accuracy of Water (kg) | （60~150） ±1% | （60~150） ±1% | 80~300）±1% |
| Weighing Range & Accuracy of Additive (kg) | / | （8~20） ±1% | （8~20） ±1% |
| Overall Weight (ton) | ≈15 | ≈22 | ≈26 |
| Installation Power (kW) | ≈61 | ≈73 | ≈92 |
| Power Supply | 380V/220V/415/440V, 50/60HZ, 3Phase | ||
Advantages of ready mix concrete batch plant for sale
It improves the quality of construction projects.
It shortens the construction period and improves the construction speed.
It reduces material waste.
It saves the amount of engineering.
It improves the performance of concrete.
It improves the construction organization, reduces labor intensity, reduces construction management costs, technical difficulty and quality risk.
It protects and improves the environment.

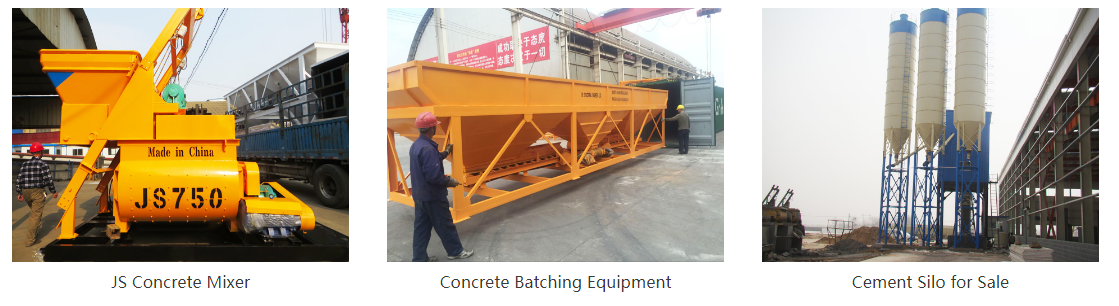

Components of ready mix concrete plant
Mixing console
It has two types, forced type concrete mixer and fall type concrete mixer. Forced type concrete mixer can stir liquidity, half harsh, harsh and other kinds of concrete.
Material weighing system
It is divided into three parts, aggregate weighing, powder weighing and liquid weighing.
Material conveying system
The system is mainly composed of aggregate transfer, powder conveying. The conveying has two ways, hopper conveyor and belt conveyor.
Material storage system
The aggregate is stacked open air, the powder fully is enclosed with steel silo storage; admixtures are stacked with steel structure container.
Control system
The available small mixing plant control system of construction site has relatively simple structure, while the large batch plant system is relatively complex.
Common Uses of Ready Mix Concrete Plants
Ready mix concrete batching plants are widely used in the construction field, making good use of their versatility and efficacy in meeting different project requirements. Some of the common applications of these plants are as follows:
Civil Engineering Projects:
Ready mix concrete plants are essential in civil engineering projects, where precise and high-quality concrete is needed for structural stability. These projects include the construction of buildings, dams, canals, as well as water treatment facilities. Ready mix plants offer consistent mixing and delivery that conforms to the strict requirements associated with civil engineering projects.
Road Construction:
Road construction and repair projects make heavy use of these plants to get the appropriate concrete mixes for pavements, curbs, gutters, and rest of the infrastructure components. Ready mix concrete is durable and strong, which makes it great for withstanding the heavy traffic loads that roads are subject to. Whether new road construction or rehabilitation work, the concrete is not only accurate but also essential — a necessity delivered by these ready mix concrete batching plants.
Pillars for Bridges and Homes:
Houses, companies, and public dwellings start with laying the foundations of a structure that can perform its functions under difficult climatic conditions. These ready mix plants facilitate the accurate concoction and administration of mixes meeting the requirements of different foundations. From deep footing to slab foundation all these plants come in forms that can provide the required strength and stability of buildings by maintaining their safety.
Driveways, Highways, and Footpaths:
Quick mix cement is often used for forming driveways, highways as well as footpaths due to its denseness, strength and aesthetic value. Ready mix plants that provide the mixture suitable for these surfaces are a must because they guarantee homogeneity between additions and withstand vehicular traffic walking. From residential driveways to large highways and pedestrian walkways, these plants help make the construction process better with a constant supply of quality concrete.
