Product Description
Skip hoist concrete batching plant is a plant which is forced and high efficiency, it is an ideal equipment to produce the concrete which is used to produce plastic concrete, dry concrete and so on. Because of its high efficiency, it is being widely used in big and medium scale construction project, road and bridge, and the factories which produces the pre-fabricated concrete component.
HZS series concrete batching plant is a plant which is forced and high efficiency, it is an ideal equipment to produce the commercial concrete which is used to produce plastic concrete, dry concrete and so on. Because of its high efficiency, it is being widely used in big and medium scale construction project, road and bridge, and the factories which produces the pre-fabricated concrete component.
This series batching plant is equipped with a JS series double horizontal shafts forced mixer which is easy to be operated and maintained, with shorter mixing time, longer life time of tear and wear parts. Its final product of concrete is very good. It is newly designed with the control system of electronic weighing, computer controlled, digital display etc. The electronic weighing system is equipped with damping device, automatic compensation and precise measuring. The transportation system for aggregate adopts the specially designed belt conveyor and sidewalk and platform for repair. So it is the ideal choice to make the high quality concrete.

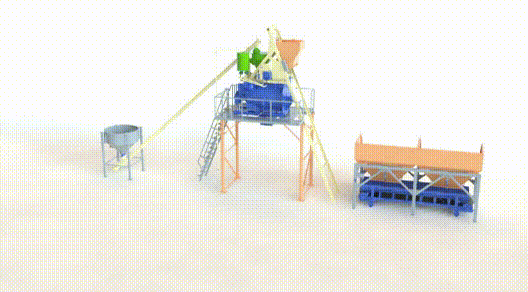

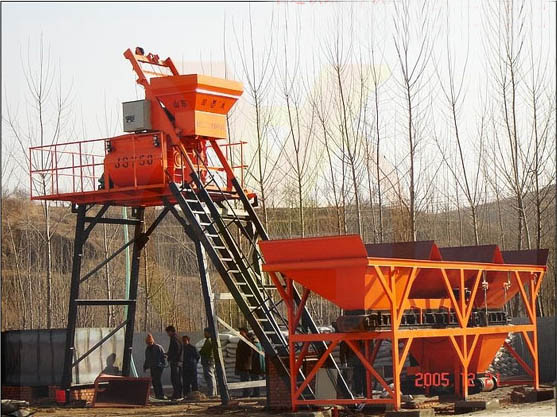

Skip hoist type Concrete Batching Plant is kind of concrete batching plant that use Skip hoist to load material. Skip hoist type Concrete Batching Plant has the advantages of small footprint, easy installation, compact structure and lower cost. The HZS25, HZS35, HZS50 and HZS75 of Haomei machinery is the Skip hoist type Concrete Batching Plant.
Technical Data
| Model | HZS25 | HZS35 | HZS50 | HZS75 |
| Production capacity (m3/h) | 25 | 35 | 50 | 75 |
| Concrete mixer | JS500 | JS750 | JS1000 | JS1500 |
| Aggregate feeding mode | Skip hoist | Skip hoist | Skip hoist | Skip hoist |
| Aggregate size (mm) | 80/60 | 80/60 | 80/60 | 80/60 |
| Discharging height(m) | 3.8 | 3.8 | 4.1 | 4.1 |
| Aggregate weighing accuracy (%) | ±2 | ±2 | ±2 | ±2 |
| Cement weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Fly ash weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Water weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Additive weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Total weight (T) | 10 | 13.5 | 18.5 | 25 |
| Total power (T) | 65 | 75 | 100 | 110 |
| Control system | Panel | Computer | Computer | Computer |
Structure

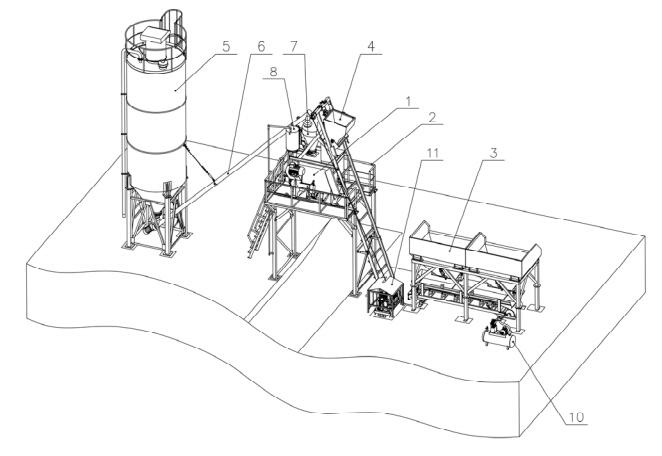

1 - concrete mixer; 2 - overpass; 3 - aggregate batcher; 4 - skip hopper; 5 - silos; 6 - screw conveyor; 7 - cement batcher; 8 - water batcher; 9 - remote control (not shown); 10 - compressor; 11 - skip drive.
Features
1. Full automatic control system, smart and automatic
2. Structural are durable.
3. Mixing system selection JS/SICOMA twin shaft concrete mixer, high efficiency, high mixing quality.
4. Computer plus PLC control system to ensure smart and stable operation, dynamic panel display can make the operator clearly and easy understanding
5. Convenient for maintenance .
6. 18 months warranty
7. Whole batching plant can be customized ( mixer, batching machine, silos, color, etc
