Product Description

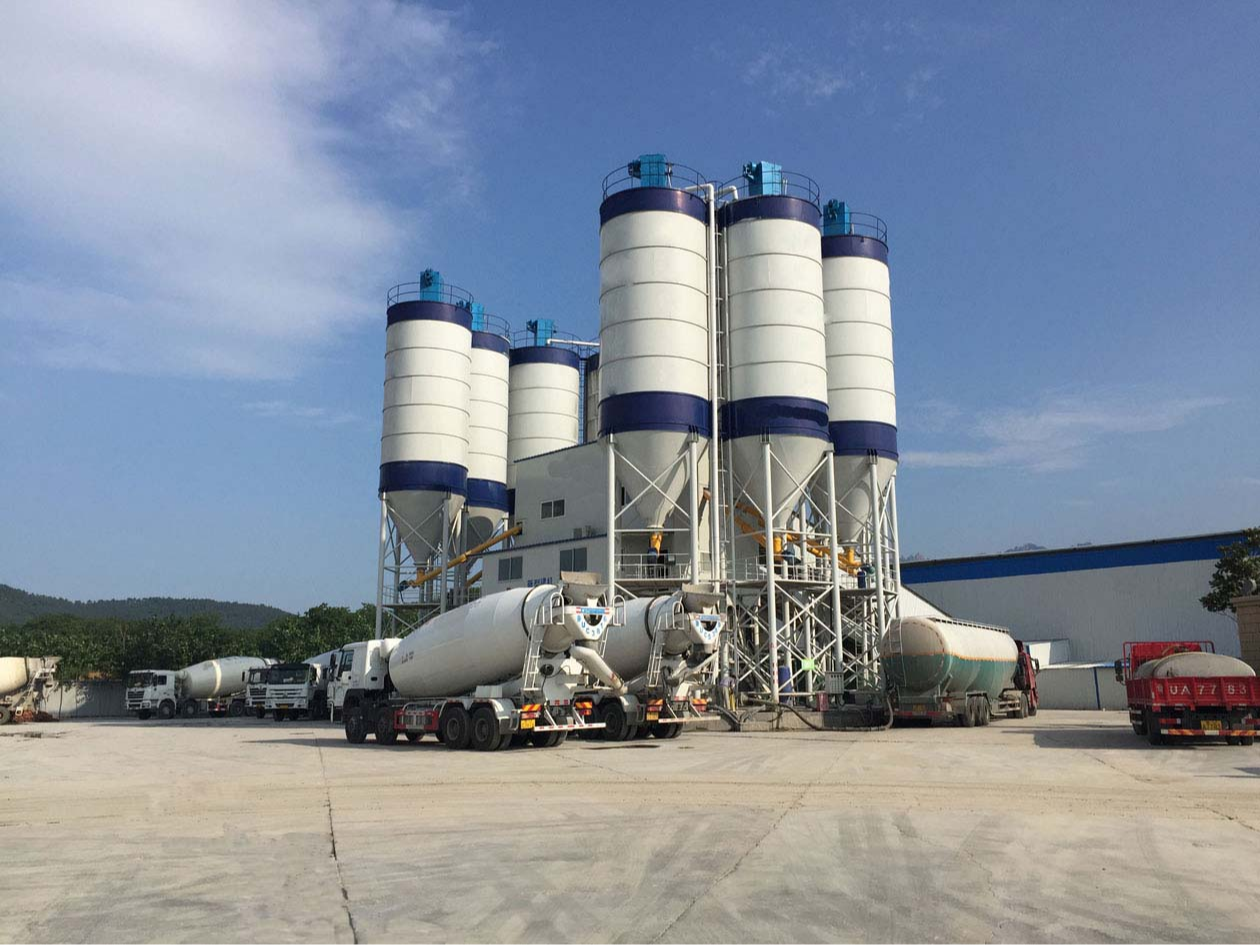

Stationary concrete batching plant is fixed on a foundation. They consist of double shaft mixers that are designed to work at high efficiency, capability, and reliability. They are used for large-scale concrete production that requires high-quality concrete. Stationary concrete mixing production equipment is built to offer maximum production capacity and to work long hours. It is highly flexible and can be used for different projects – especially for massive infrastructure and precast concrete projects. The production capacity of stationary Ready mix concrete batching plant is larger than the mobile plant.
Stationary concrete batching plant can produce various of concrete, such as, dry rigid concrete, semi-dry rigid concrete, plastic concrete, fluid concrete, etc. With the development of construction industry, the stationary concrete plant has wide use on the road construction, factory construction, bridge construction and so on. Its production output ranges from 25m3/h to 240m3/h, which can totally meet the demand of different customers. If you are interested in our machine, welcome to click here to get the quotation.
The stationary concrete plant is divided into two forms: skip hopper stationary concrete batching plant and belt conveyor stationary concrete batching plant
Technical Parameters
| HZS60 | HZS90 | HZS120 | HZS180 | HZS240 | ||
| Theoretical production(m3/h) | 60 | 90 | 120 | 180 | 240 | |
| Concrete mixer | Type | JS1000 | JS1500 | MAO3000/2000 | MAO4500/3000 | MAO6000/4000 |
| Power(KW) | 18.5 | 65.5 | 74 | 110 | 150 | |
| Discharging capacity (L) |
1000 | 1500 | 2000 | 3000 | 4000 | |
| Aggregate size (Pebble/ Macadam) (mm) |
80/60 | 80/60 | 80 | 150 | 150 | |
| Aggregate Bin volume(m3) | 8.38 | 12 | 20 | 30 | 40 | |
| Belt conveying Capacity(t/h) | 300 | 450 | 550 | 650 | 900 | |
| Weighing Accuracy | Aggregate (KG) | 3000Kg ±2% | 3000Kg ±2% | 2200Kg ±2% | 3000Kg ±2% | 4200Kg ±2% |
| Cement(KG) | 1500Kg ±1% | 1500Kg ±1% | 1200Kg ±1% | 1800Kg ±1% | 2200Kg ±1% | |
| Fly ash(KG) | 600Kg ±1% | 900Kg ±1% | 400Kg ±1% | 500Kg ±1% | 800Kg ±1% | |
| Water (KG) | 600Kg ±1% | 600Kg ±1% | 500Kg ±1% | 800Kg ±1% | 1000Kg ±1% | |
| Additive(KG) | 50Kg ±1% | 50Kg ±1% | 50Kg ±1% | 80Kg ±1% | 80Kg ±1% | |
| Total power(KW) | 120Kw | 165Kw | 130Kw | 170KW | 220KW | |
| Discharging height(M) | 3.8 m | 4.1 m | 4.1m | 4.1m | 4.1m | |
What are the Advantages of Stationary Concrete Plant?
Modern Stationary Concrete Batching Plants are designed by considering maximum capacity, high flexibility, efficiency and reliability in order to produce all kinds of high-quality concrete in series.
Advantages
The advantages of Stationary Concrete Plant are:
1- High Production Capacity and High Performance (Wide concrete production ranges from 30 m³ / h up to 200 m³ / h with single mixer, concrete production capacity up to 400 m³ / h with double mixer)
2- High Configuration Flexibility (Thanks to its flexible structure, configuration options that can meet the needs of the user completely)
3- Special Settlement Opportunity Fully Compatible with the Installation Area (settlement alternatives that can fit different installation areas) 4- Durable and Long-Life Main Chassis and Aggregate Bunker Design (Robust construction, safe transportation, long life working and weighing minimizes vibrations and provides precise weighing)
5- Easy and Fast Maintenance Advantage (Wide maintenance platforms, easy and safe access to the main parts and weighing scales of the mixer, special scale solid upper platform)
6- Special Concrete Production Facility (RCC, concrete parquet, concrete pipe, prefabricated element production) 7- Age Type, Dry Type; Wet & Dry Type Concrete Production Facility
